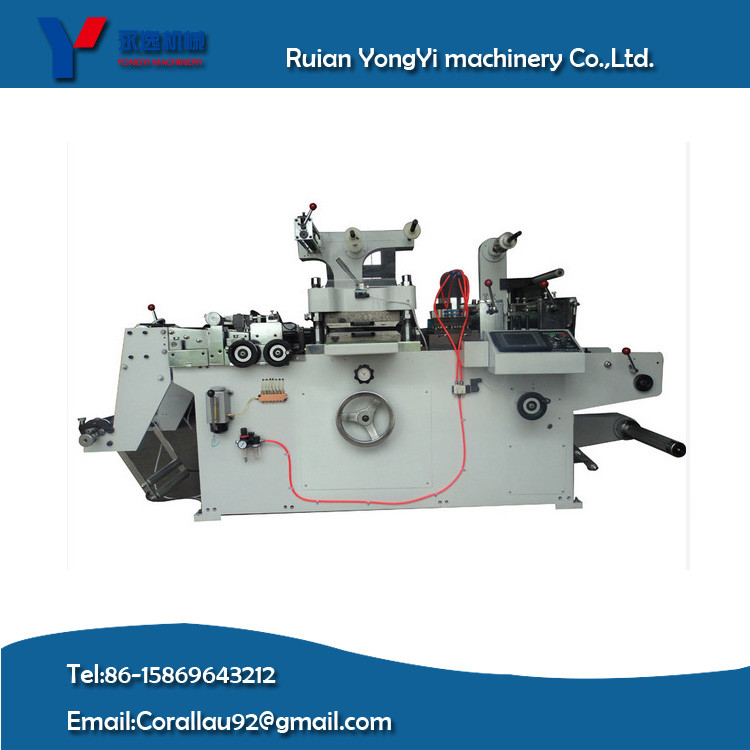

Label Die Cutting Machine/Hot Foiling/Hot Stamp Machine

Label Die Cutting Machine/Hot Foiling/Hot Stamp Machine

Label Die Cutting Machine/Hot Foiling/Hot Stamp Machine

Product Details:

Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: YYMQ-320

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 12000USD
Packaging Details: Use in stretch film package, or wooden pack
Delivery Time: within 3days delivery
Payment Terms: TT
Supply Ability: 25sets/month
Contact Now
Detailed Product Description
Rated Power: 2.2kw No-Load Rotational Speed: 10-150times/min
Saw Blade Diameter: 320 Max. Cutting Depth: 0-450gsm
Application: Automtic Dimensions: 2.8×1.3×1.4m
Weight: 2000kg Type: Label Die Cutting Machine

Product Description

Adhesive Label, Screen Protector, Tape Automatic Die-Cutting Machine Hot Stamping Punching

Main Parameters:
Model MQ-320BIV
Max Feeding Width(mm) 320
Max Cutting Area(W*L) 300*300
Max Cutting Speed(T/Min) 180
Position Accuracy(mm) ±0.10
Power Of Main Engine(kw) 2.2
Size(L*W*H)(m) 2.7*1.25*1.5
Voltage(V) 380
Weight(kg) 1500
Total Power(kw) 5


Functional characteristics:
This machine enjoys multi-layer sticking, partial laminating, multi-strip tape laminating, etc. The imported motor is used for the receiving (separating) bottom sheet of sticking film. Feeding-filming (enjoying multi-layer laminating and partial laminating)-die cutting-waste draining-slitting-rolling, all of them are completed by the computer control by one turn. Materials can be fed with a conveyor belt, and die-cut to cut fully.

Scope applicable:
Various insulating materials such as electronic shield materials, PVC, film, Mylar, copper foil, aluminum foil, foam, etc

Die cutting the adhesive tape:
