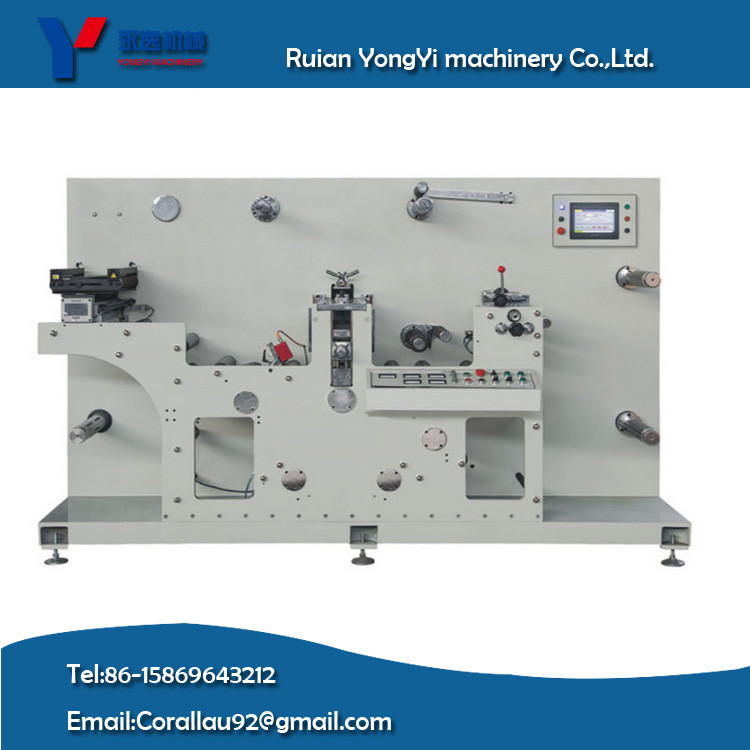

adhesive label semi-rotary die cutter with varnishing/flexo printing unit

adhesive label semi-rotary die cutter with varnishing/flexo printing unit

adhesive label semi-rotary die cutter with varnishing/flexo printing unit

Product Details:

Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: YY-320

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 1000-120000USD
Packaging Details: Use in stretch film package, or wooden pack
Delivery Time: within 25days delivery
Payment Terms: TT
Supply Ability: 10sets/month
Contact Now
Detailed Product Description
Rated Power: 7.5kw No-Load Rotational Speed: 110m/min
Saw Blade Diameter: 320mmX450mm Application: Semi-automtic
Dimensions: 2500*1600*1600 Weight: 1700kg
Type: Adhesive Label Die Cutting Machine

1. Characteristics:
SRF-330 Semi-rotary Flexographic coating machine is the optimal solution designed for digital converting process,especially coating as pre press on digital printer and also finishing procedure,as full servo driven,the machine is able work in both full rotary or semi-rotary mode with register,spot varnishing or flood coating,optional IR dryer,UV curing system,corona,dust proof etc.

2. Main technical parameter:

Max Coating Speed

300Cycles/Min

Accuracy of Print

±0.15mm

Max Print Area

320mmX450mm(W*L)

Paper Width

330mm

Max Unwinding Dia.

700mm

Max Rewinding Dia.

700mm

Standard Print cylinder

160Teeth 1/8”CP(Standard)

UV Power

7.5kW

IR Power

12KW

MOTOR Power

8KW

Overall Diameter(L×W×H)

2500*1600*1600

Weight

1700KGS



3.Standard configuration:
A:Unwinding
B:Web Guider
C:160teeth printing cylinder(solid,can’t changeable)
D:Servo motors(Panasonic imported from Japan)
E:HMI Touch screen operating system(Schneider+PLC)
F:Slitter
G:Rewinder&Waste matrix mandrels.
Ps:these offers are valid in 2 month.

4. Delivery time: 60 days

5.Payment terms: T/T.30% deposit in advance, and 70% balance payment before shipment
