| Place of Origin: | Adhesive Label Die Cutting Machine made in China |
| Brand Name: | YONGYI's Adhesive Label Die Cutting Machine |
| Certification: | CE of Adhesive Label Die Cutting Machine |
| Model Number: | MQ-320/450 Computer Adhesive Label Die Cutting Machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 12000USD |
| Packaging Details: | Use in stretch film package, or wooden rack |
| Delivery Time: | within 25days delivery |
| Payment Terms: | TT |
| Supply Ability: | 25sets/month |
| Rated Power: | 2.2kw | No-Load Rotational Speed: | 10-150times/min |
|---|---|---|---|
| Saw Blade Diameter: | 320 | Max. Cutting Depth: | 0-450gsm |
| Application: | Automtic | Dimensions: | 2.8×1.3×1.4m |
| Weight: | 2000kg | Type: | Adhesive Label Die Cutting Machine |

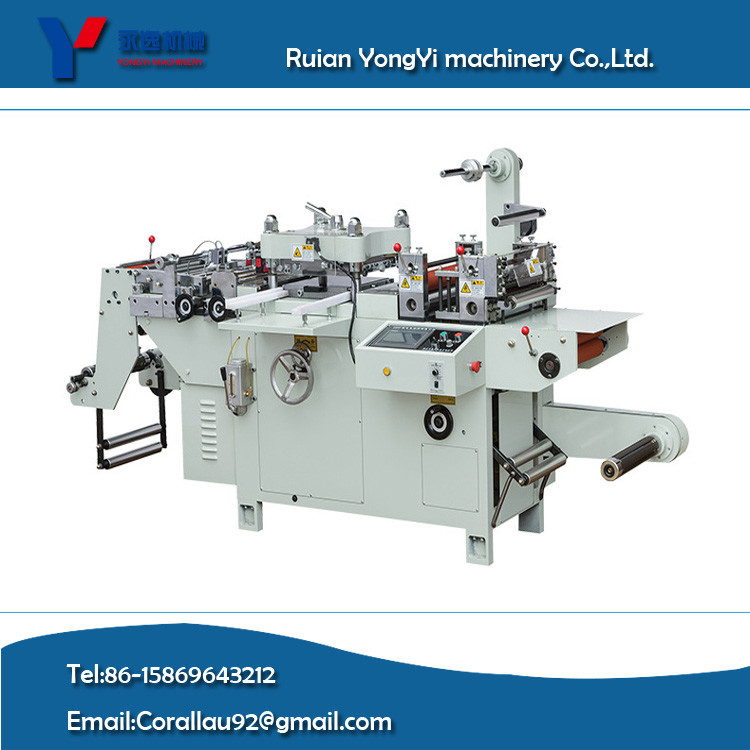

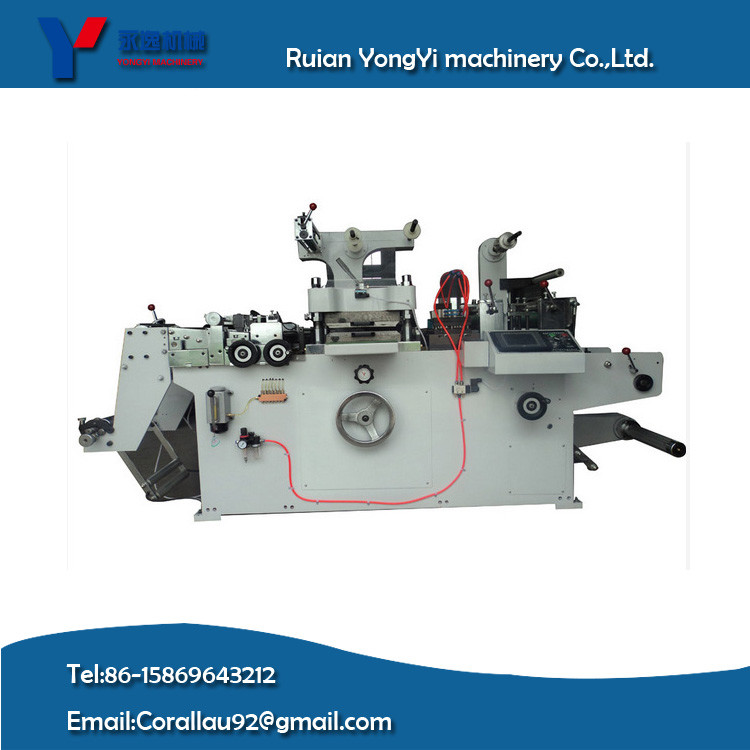

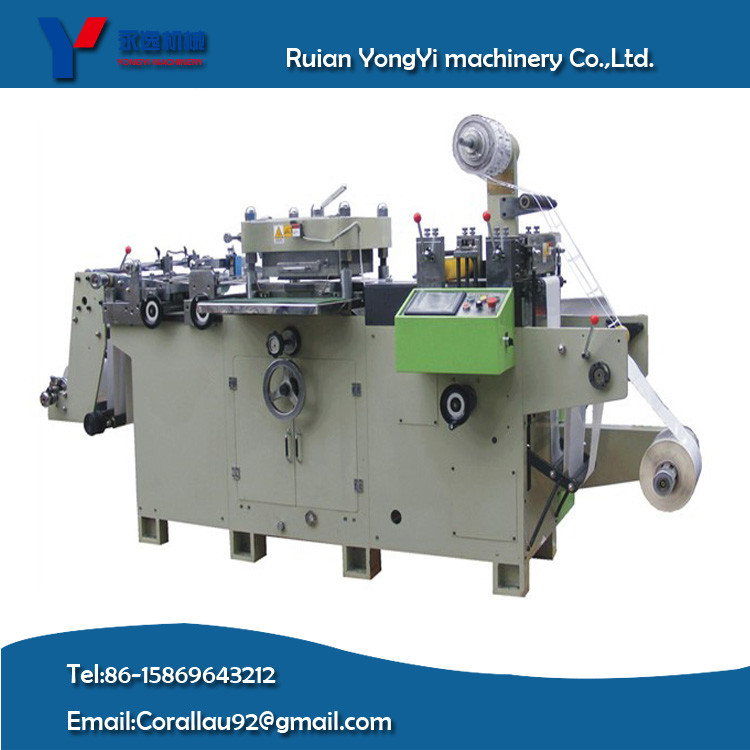

MQ-320/450 Computer Adhesive Label Die Cutting Machine
Feature:
The machine is applicable to die through platen with high precision, while the computer controls the slices
and conveyor.
The sides of label and longitudinal route are tracked through three photoelectric eyes to position, while
the die cutting, discarded delivery or auto label labeling can be finished in the processing
of one web, The machine is applicable to die cut paper self adhesive label.
Dacron film label and laser antifalse label,
It is an ideal complete set of soft printing machine, continuous thread printing machine, relief printing
machine and die compress machine for anti-false label.
Main technical specification:
|
Model |
MQ-320 |
MQ-450 |
|
Max. Unwind width |
320mm |
450mm |
|
Die cut area |
300×300mm |
400×400mm |
|
Die cut speed |
30-180times/min |
30-180times/min |
|
precision |
±0.1mm |
±0.1mm |
|
Main motor |
2.2kw |
3kw |
|
dimension |
2.8×1.3×1.4m |
2.8×1.5×1.4m |
|
Unwind diameter |
500mm |
500mm |
|
power |
220/380V |
220/380V |
