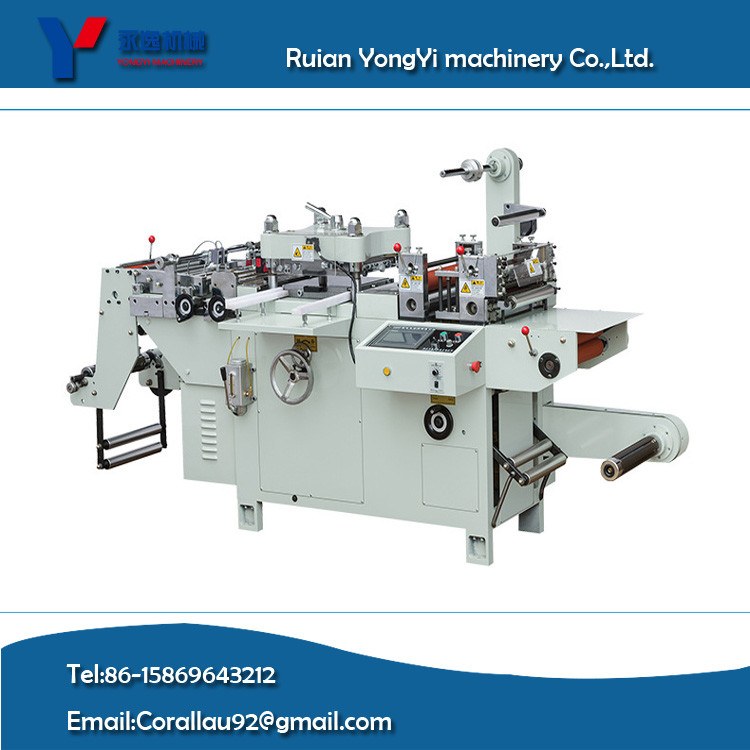

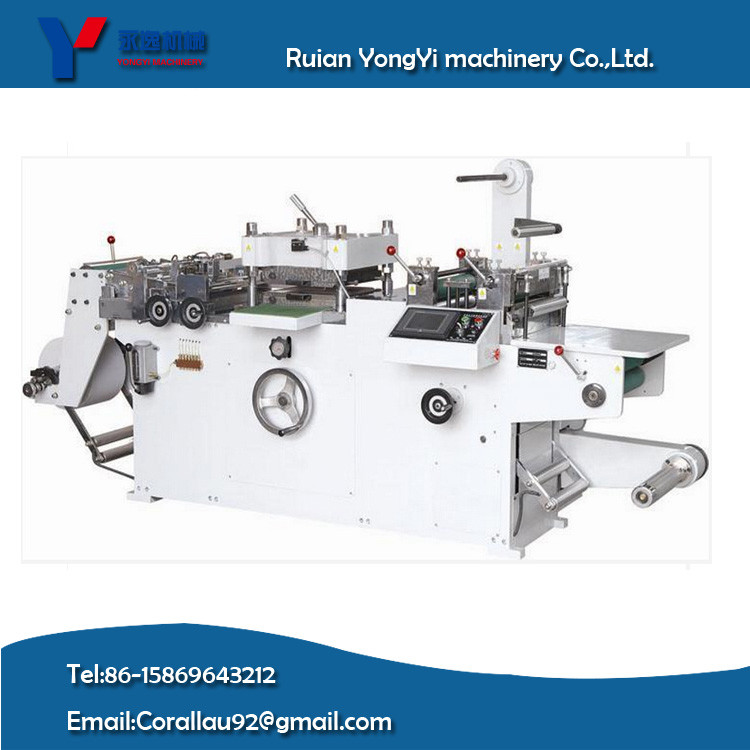

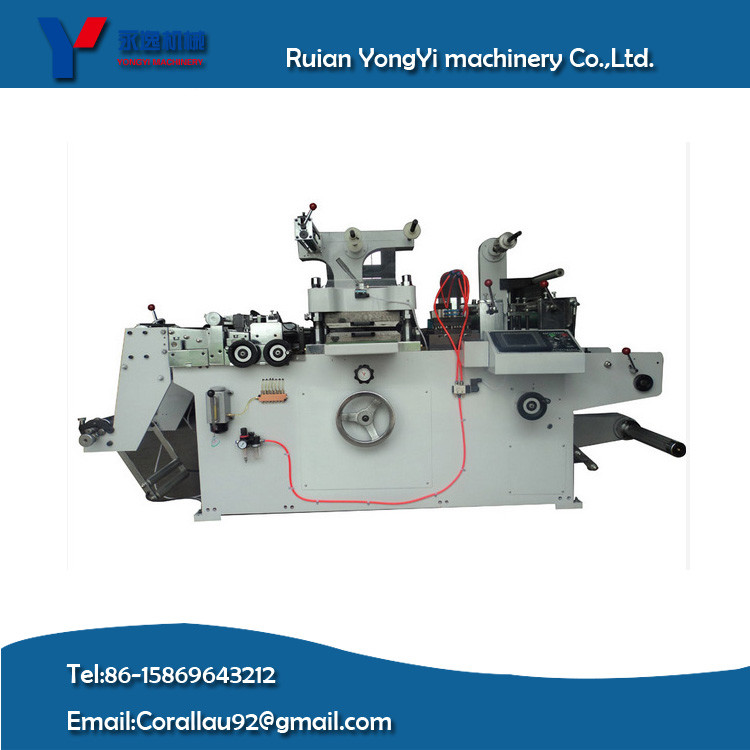

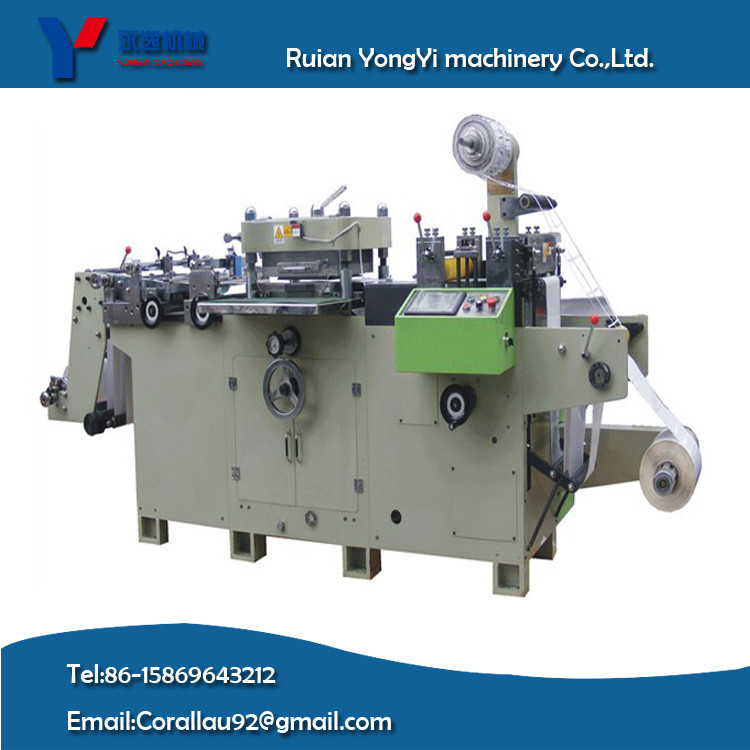

Adhesive Label Die Cutting Machine (MQ-320)

Adhesive Label Die Cutting Machine (MQ-320)

    • Adhesive Label Die Cutting Machine (MQ-320)
    • Adhesive Label Die Cutting Machine (MQ-320)
    • Adhesive Label Die Cutting Machine (MQ-320)
    • Adhesive Label Die Cutting Machine (MQ-320)
    • Adhesive Label Die Cutting Machine (MQ-320)
  • Adhesive Label Die Cutting Machine (MQ-320)

    Product Details:

    Place of Origin: ZHEJIANG,CHIAN
    Brand Name: YONGYI
    Certification: CE
    Model Number: YYMQ-320

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: 12000USD
    Packaging Details: Use in stretch film package, or wooden pack
    Delivery Time: within 3days delivery
    Payment Terms: TT
    Supply Ability: 25sets/month
    Contact Now
    Detailed Product Description
    Rated Power: 2.2kw No-Load Rotational Speed: 10-150times/min
    Saw Blade Diameter: 320 Max. Cutting Depth: 0-450gsm
    Application: Automtic Dimensions: 2.8×1.3×1.4m
    Weight: 2000kg Type: Label Die Cutting Machine

    Product Description

    Adhesive Label, Screen Protector, Tape Automatic Die-Cutting Machine Hot Stamping Punching

    Main Parameters:
    Model MQ-320BIV
    Max Feeding Width(mm) 320
    Max Cutting Area(W*L) 300*300
    Max Cutting Speed(T/Min) 180
    Position Accuracy(mm) ±0.10
    Power Of Main Engine(kw) 2.2
    Size(L*W*H)(m) 2.7*1.25*1.5
    Voltage(V) 380
    Weight(kg) 1500
    Total Power(kw) 5


    Functional characteristics:
    This machine enjoys multi-layer sticking, partial laminating, multi-strip tape laminating, etc. The imported motor is used for the receiving (separating) bottom sheet of sticking film. Feeding-filming (enjoying multi-layer laminating and partial laminating)-die cutting-waste draining-slitting-rolling, all of them are completed by the computer control by one turn. Materials can be fed with a conveyor belt, and die-cut to cut fully.

    Scope applicable:
    Various insulating materials such as electronic shield materials, PVC, film, Mylar, copper foil, aluminum foil, foam, etc

    Die cutting the adhesive tape:

    .jpg
