Computerized Register Gravure Printing Machine (YYASY-1100B model)

1SET
MOQ
20000-50000USD
Price
Computerized Register Gravure Printing Machine (YYASY-1100B model)
Features Gallery Product Description Request A Quote
Features
Specifications
Dimensions(L*W*H): 10600×2900×3020
Gross Power: 9000kg
Type: Rotogravure Printing Machine
Plate Type: Gravure
Usage: Paper Printer
Color & Page: Multicolor
Automatic Grade: Automatic
Basic Infomation
Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: YYASY-B
Payment & Shipping Terms
Packaging Details: Use in stretch film package
Delivery Time: within 25days delivery
Payment Terms: TT
Supply Ability: 15sets/month
Product Description

Computerized Register Gravure Printing Machine

Product Description

1. Plastic film Gravure printing machine Its printing speed is 100m/min, mechanical speed is 120m/min.
2. Unwinding and rewinding dual station turret, inching rotation.
3. Unwinding powder brake, automatic tension.
4. Unwinding and rewinding air shaft
5. Pneumatic pressing roller,doctor blade,ink pump
6. Shaftess printing cylinder.
7. Automatic registration with video inspection.
8. Electric heating or gas heating or oil heating.
9. Independent drying and suction exhausting system, air circulated, max recycled rate 50%, outside oven increase the amount of blowing air to ensure the drying.
10. Assisted oven on the top of last printing unit can prevent the last color adhesive to the printing cylinder when the color cover the whole cylinder, making the film completely dry.
11. Waste air eliminating tunnel.
12. Rewinding adopts two torque motor.
13. Main motor: Frquency motor
14. Cast iron wallboard, thickness is 70mm.
Technical parameter            ModelYYASY-800BYYASY-1100B
Web width800mm1100mm
Printing speedMax 80-100m/minMax 80-100m/min
Print cyl. dia.Φ100-350mmΦ100-350mm
Rolling material dia.Φ570mmΦ570mm
Print cyl. cross adjustable30mm30mm
Print. cyl. longitudinal adjustable100°100°
Registering accuracy±0.1mm±0.1mm
Total power127kw127kw
Weight9000kg10000kg
Overall dimensions(L×W×H)(mm)10600×2900×302010600×3200×3020

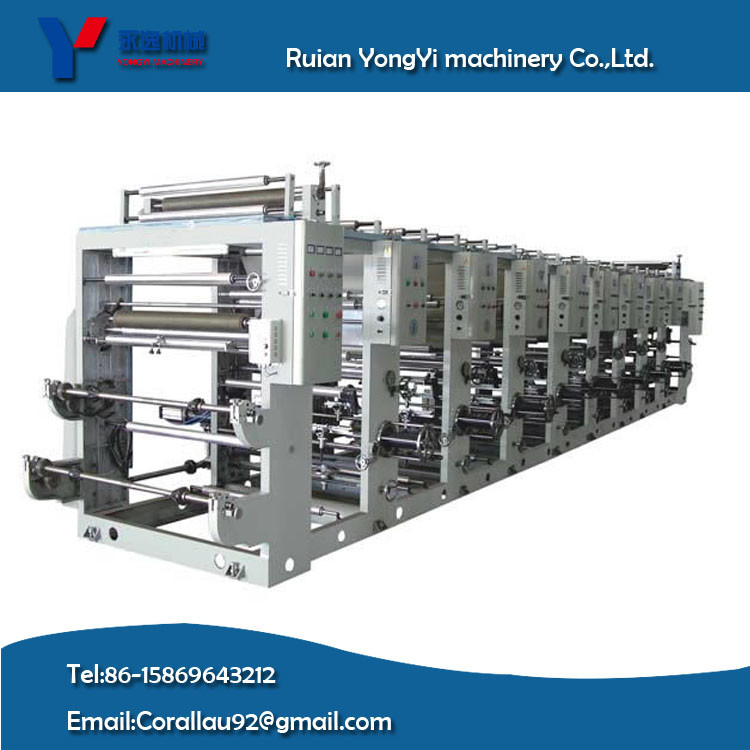

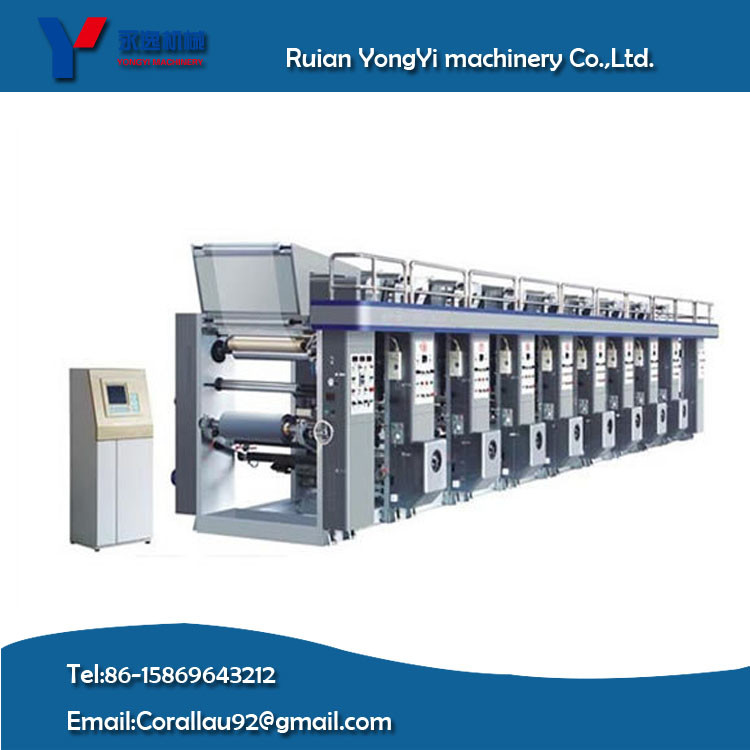

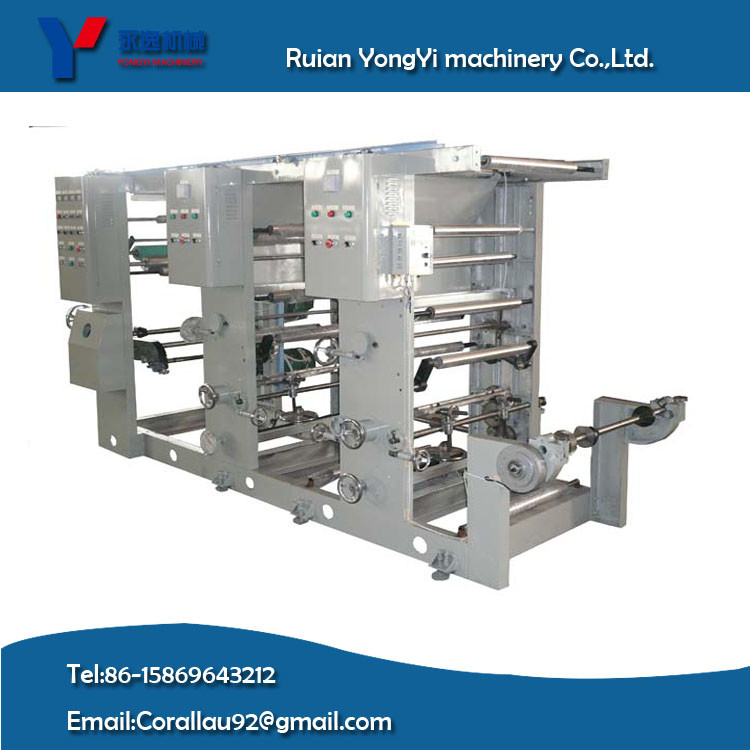

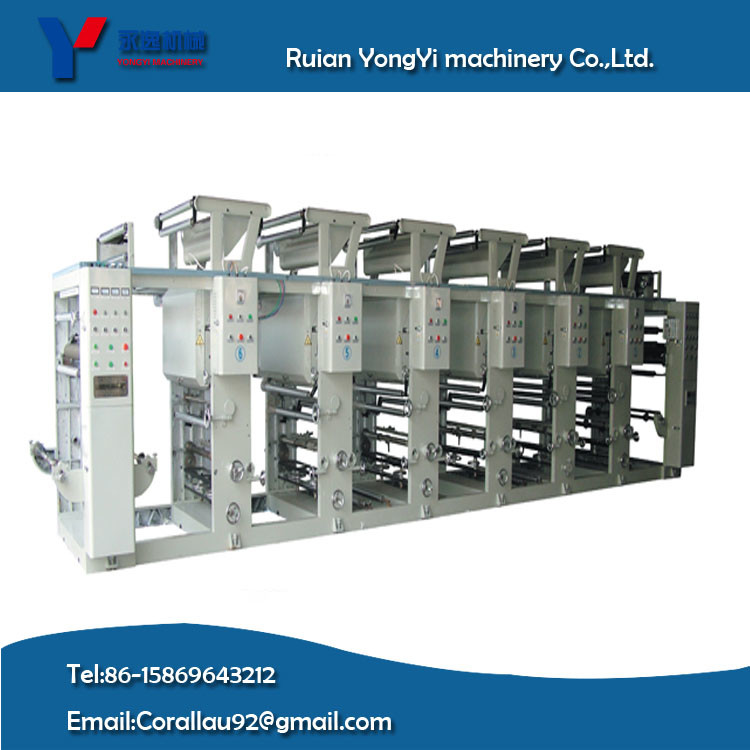

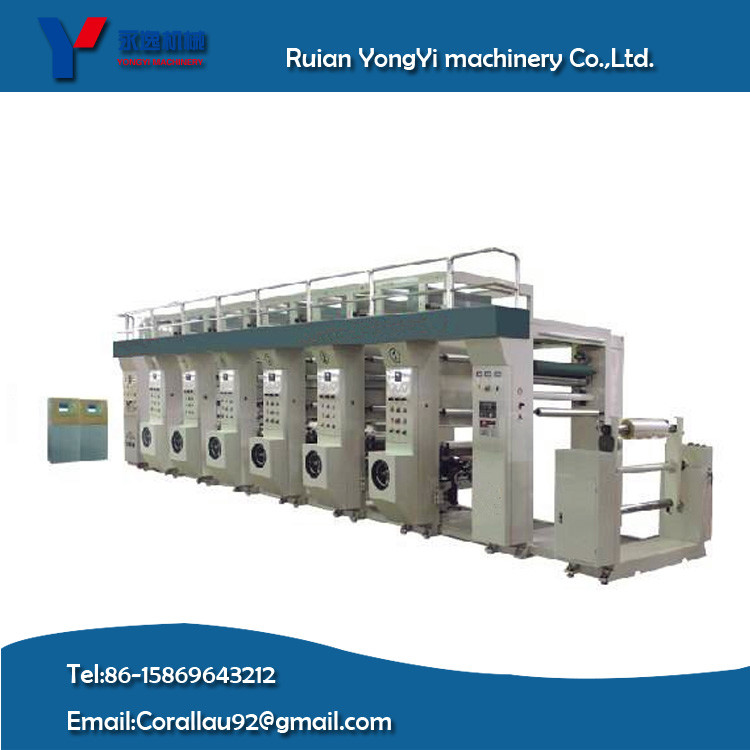

Computerized Register Gravure Printing Machine (YYASY-1100B model) 0Computerized Register Gravure Printing Machine (YYASY-1100B model) 1
