Name: Normal Speed Computerized Register Gravure Printing Machine (YYASY-800B model)
Brand: YONGYI
SKU: YYASY-B
Price: 20000 USD

Home Products Gravure printing machine

Normal Speed Computerized Register Gravure Printing Machine (YYASY-800B model)

Product Details:

Place of Origin:	ZHEJIANG,CHIAN
Brand Name:	YONGYI
Certification:	CE
Model Number:	YYASY-B

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	20000-50000USD
Packaging Details:	Use in stretch film package
Delivery Time:	within 25days delivery
Payment Terms:	TT
Supply Ability:	15sets/month

Contact Now

Detailed Product Description

Dimensions(LWH):	10600×2900×3020	Gross Power:	9000kg
Type:	Rotogravure Printing Machine	Plate Type:	Gravure
Usage:	Paper Printer	Color & Page:	Multicolor
Automatic Grade:	Automatic

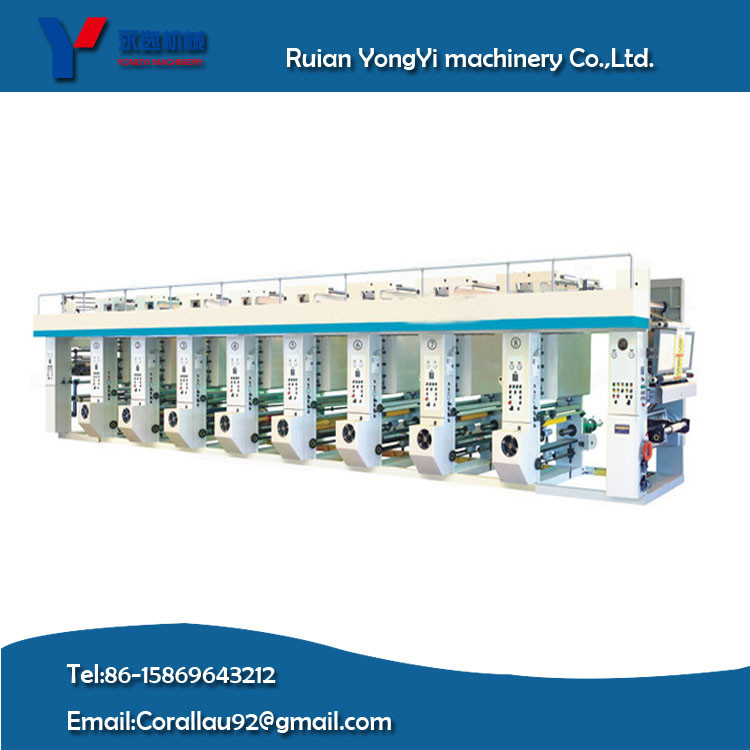

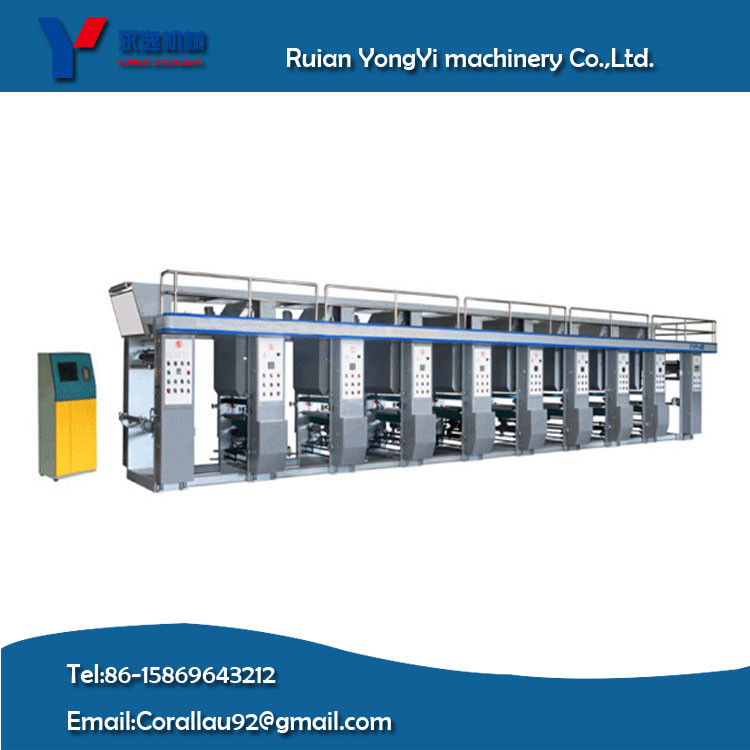

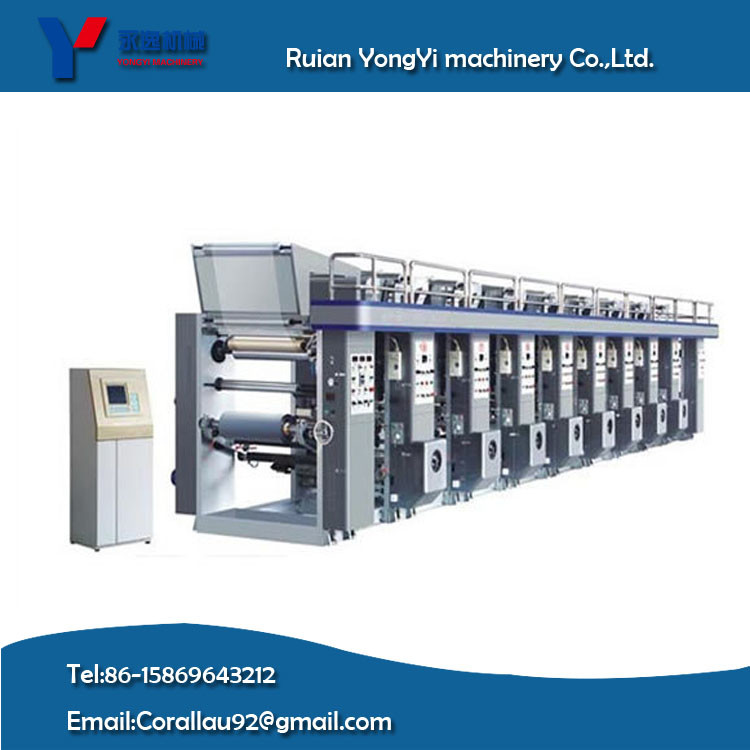

Computerized Register Gravure Printing Machine

Product Description

1. Plastic film Gravure printing machine Its printing speed is 100m/min, mechanical speed is 120m/min.
2. Unwinding and rewinding dual station turret, inching rotation.
3. Unwinding powder brake, automatic tension.
4. Unwinding and rewinding air shaft
5. Pneumatic pressing roller,doctor blade,ink pump
6. Shaftess printing cylinder.
7. Automatic registration with video inspection.
8. Electric heating or gas heating or oil heating.
9. Independent drying and suction exhausting system, air circulated, max recycled rate 50%, outside oven increase the amount of blowing air to ensure the drying.
10. Assisted oven on the top of last printing unit can prevent the last color adhesive to the printing cylinder when the color cover the whole cylinder, making the film completely dry.
11. Waste air eliminating tunnel.
12. Rewinding adopts two torque motor.
13. Main motor: Frquency motor
14. Cast iron wallboard, thickness is 70mm.

Technical parameter Model	YYASY-800B	YYASY-1100B
Web width	800mm	1100mm
Printing speed	Max 80-100m/min	Max 80-100m/min
Print cyl. dia.	Φ100-350mm	Φ100-350mm
Rolling material dia.	Φ570mm	Φ570mm
Print cyl. cross adjustable	30mm	30mm
Print. cyl. longitudinal adjustable	100°	100°
Registering accuracy	±0.1mm	±0.1mm
Total power	127kw	127kw
Weight	9000kg	10000kg
Overall dimensions(L×W×H)(mm)	10600×2900×3020	10600×3200×3020
