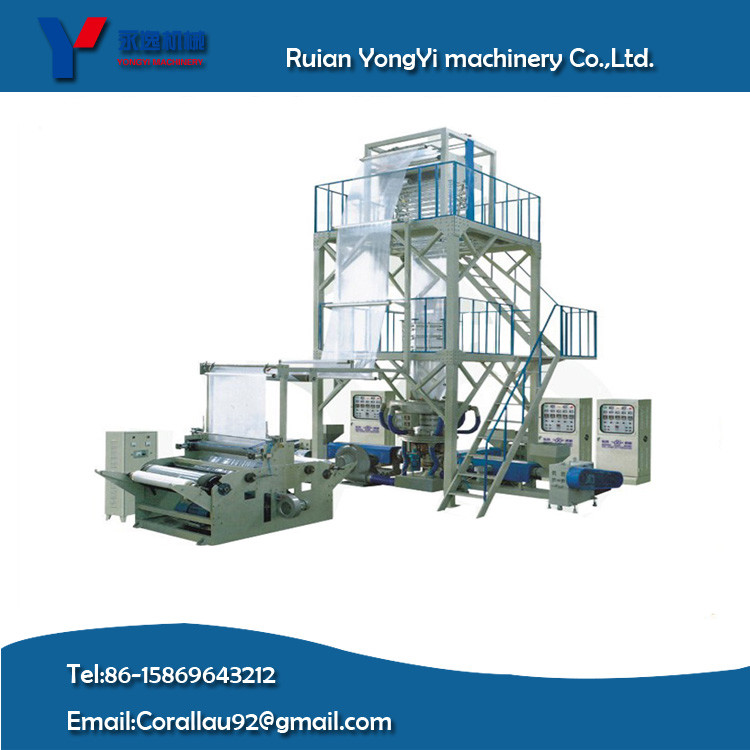

Three Layers Co-Extrusion Film Blowing Machine

1SET
MOQ
60000-100000USD
Price
Three Layers Co-Extrusion Film Blowing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Plastic Processed: PE
Application: Film
Blow Moulding Type: Extrusion Blow Moulding
Automatic: Yes
Basic Infomation
Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: 3SJ-1200
Payment & Shipping Terms
Packaging Details: Use in stretch film package
Delivery Time: within 40days delivery
Payment Terms: TT
Supply Ability: 10sets/month
Product Description

Product Description

This film blowing machine set is to satisfy the customer's requirements of high quality, high out put film blowing equipment. It adopts the extruder with force feeding function, precision type ceramic heater, precision type double vents air ring, horizontal type rotary traction system, IBC inner cooling system, fully automatic surface friction type double cut double winders, computer concentrate control system, advanced technique and equipments. Compare with kindred equipment, it has the advantages such as more compact structure, higher output, better produce quality, less energy consume, easier operation. It can be widely used into various kind of high transparence packing film manufacture, and create the considerable economic benefit for you.
Three Layers Co-Extrusion Film Blowing Machine 0
Three Layers Co-Extrusion Film Blowing Machine 1
Three Layers Co-Extrusion Film Blowing Machine 2
Type

SJ55-GS1300

SJ60-GS1500

SJ65-GS1800

SJ-GS2300

Max. Lay Flat Width (mm)

1200

1400

1700

2100

Film Layer

3

3

3

3

Film Thickness (mm)

0.02-0.12

0.02-0.12

0.02-0.12

0.02-0.12

Max. Output(kg/h)

200

250

300

400

Raw Material

LLDPE  , LDPE  , EVA

Screw Diameter(mm)

φ 45/φ 55/φ 45

φ 50/φ 60/φ 50

φ 60/φ 70/φ 60

φ 75/φ 90/φ 75

Screw L/D Ratio

30.1

30.1

30.1

30.1

Screw Max. Rotation Speed (r/min)

100

100

100

100

Extruding Driving Power(kw)

18.5/30/18.5

22/37/22

30/45/30

55/90/55

Die Structure

IBC Film Tube Inner Cooling System

Air-ring Structure

Double Vents Air Ring

Reversing Haul-off System

Horizontal± 180°

Take-off Wide-up Speed (m/min)

45-120

Total Power(kw)

150

280

280

350

Overall Dimensions(mm)

According to actual machine
