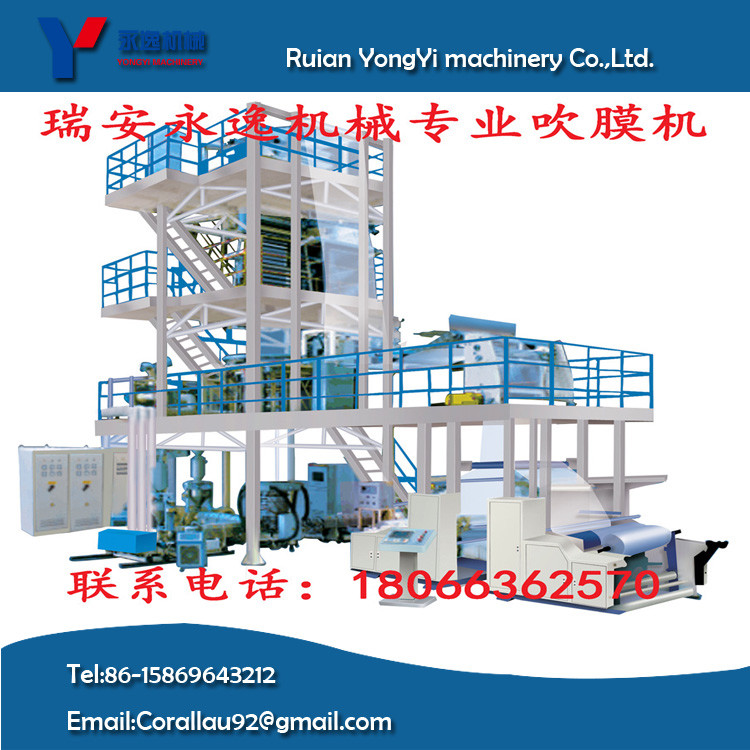

Three Layers Co-Extrusion Film Blowing Machine

Three Layers Co-Extrusion Film Blowing Machine

Three Layers Co-Extrusion Film Blowing Machine

Product Details:

Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: 3SJ-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 60000-100000USD
Packaging Details: Use in stretch film package
Delivery Time: within 40days delivery
Payment Terms: TT
Supply Ability: 10sets/month
Contact Now
Detailed Product Description
Plastic Processed: PE Application: Film
Blow Moulding Type: Extrusion Blow Moulding Automatic: Yes

Product Description


Multi-layer Co-extrusion Rotary traction Plastic PE Film Blowing Machine
Main feature
This machine isoptimum designed on the trounds of preference of analogous lines in foreign and home.The die head is lauer type spiral mandrel, continous 360,rotation.The air ring is high-performance and double air vent.
And the machine is with high speed net changer, double rewinder with superficial and so on.

This  machine can produce co-extruded film like LDPE,LLDPE,HDPE,which have good insulation,antihu-mid,anti-rorst,oil resistive.So it is widely used for light and heavy-duty packing,such as the fresh fruit,meet-feeding,salt vegetable,fresh ,milk and drink.

Model 3SJ-1300
Suitable material LDPE,HDPE,LLDPE
Layflat width of film 1200mm
Thickness of film 0.02-0.20mm
Max extrusion output 160kg/h
Screw diameter Φ45 Φ 55Φ45
Screw L/D 30:1
Screw rotation 10-100r/min
Main motor 18.5/30/18.5 kw
Dia of orifice Φ200mm
Rir ring structure form Double air vent air ring
Rotary traction form 360 °Horizontal rotation
Total power 140kw
Dimension (L*W*H) 10*5.5*9.5M
Weight 14 T
