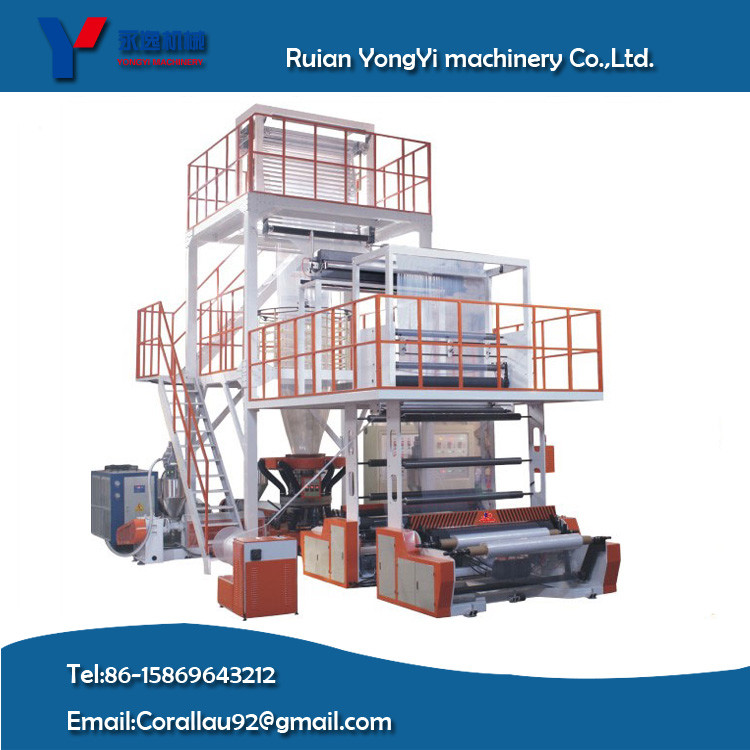

Three-Layer Common-Extruding Rotary Film Blowing Machine

Three-Layer Common-Extruding Rotary Film Blowing Machine

Three-Layer Common-Extruding Rotary Film Blowing Machine

Product Details:

Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: 3SJ-1200

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 60000-100000USD
Packaging Details: Use in stretch film package
Delivery Time: within 40days delivery
Payment Terms: TT
Supply Ability: 10sets/month
Contact Now
Detailed Product Description
Plastic Processed: PE Application: Film
Blow Moulding Type: Extrusion Blow Moulding Automatic: Yes

Product Description


1. Die head is Lauer type spiral mandrel, continuous 360, rotation.
2. Screen pack changer design is r at ional convenience, reliable, safe in Operation.
3. Various functional parts may be installed to the lies, such as length counting device, vertical cutting device, cooling water row pipe, film spreading roller, scrap collecting device.

The lines are designed developed by our corporation according to market need, they reach the advanced levels in the 90s, come up with analogous lines in home. It is optimum designed on the triunes of preference of analogous lines in foreign and home. The lines can be blown continuous 1200/1300/1500mm in fold width 0.08mm in the thickness packaging films, from LDPE, HDPE, LLDPE, MLLPE, horizontal extrusion up blown. The film has good insulation, for instance holding temperature, antique-mid, anti-breeze, anti-rain, anti-roust, insulation oxygen, oil resistive, and so used for light and heavy-duty packaging, for example fresh fruits, meat-feeding, salt vegetables, fresh milk, drink.
Model SJ-45×3/FM1000 SJ-50×3/FM1200 SJ-55×3/FM1500
Screw Diameter φ 4 5mm φ 50mm φ 55mm
Screw Ratio L/D30:1 L/D30:1 L/D30:1
Screw Speed 15-150r/min 15-150r/min 15-150r/min
Main Motor Power 11Kw ×3 15Kw ×3 18.5Kw ×3
Max. Extrusion Output 150kg /h 120kg /h 150kg /h
Range of Die φ 200 φ 250mm φ 200 φ 250mm φ 250 φ 300mm
Single-sided Thickness of Film 0.01 -0.10mm 0.01 -0.10mm 0.01 -0.10mm
Max. Folding Width of Film 1000mm 1200mm 1500mm
Electric Total Capacity 176Kw 88Kw 102Kw
Weight of Machine 4200kg 5300kg 6200kg
Overall Dimension(L×W×H) 6600×4100× 5000mm 6800×4300× 6000mm 7000×4800× 6800mm

Three to Five Layers Co-Extrusion Film Blowing Machine
Three to Five Layers Co-Extrusion Film Blowing Machine
