Name: YYXJ Series Computer Control Four Lines Cold Cutting Bag Making Machine
Brand: RUIAN YONGYI MACHINERY CO.,LTD
SKU: YYXJ-600 Four Lines Cold Cutting Bag Making Machine
Price: 7500 USD
Availability: InStock

YYXJ Series Computer Control Four Lines Cold Cutting Bag Making Machine

1 set

MOQ

7500USD

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Type: Cutting Machine

Material: Plastic

Computerized: Yes

Bag Type: Flat Bag

Basic Infomation

Place of Origin: Four Lines Cold Cutting Bag Making Machine made in China

Brand Name: YONGYI's Four Lines Cold Cutting Bag Making Machine

Certification: CE of Four Lines Cold Cutting Bag Making Machine

Model Number: YYXJ-600 Four Lines Cold Cutting Bag Making Machine

Payment & Shipping Terms

Packaging Details: Use in stretch film package, or wooden rack

Delivery Time: within 25days delivery

Payment Terms: TT

Supply Ability: 25sets/month

Gallery

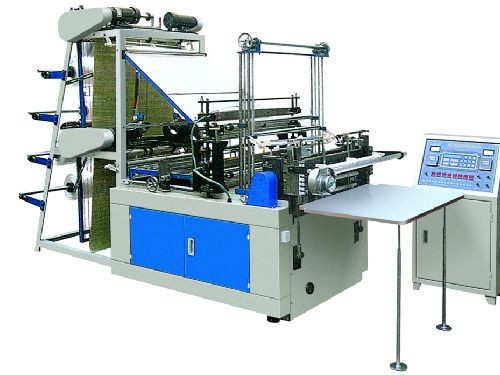

YYXJ Series Computer Control Four Lines Cold Cutting Bag Making Machine

Product Description

YYXJ Series Computer Control Four Lines Cold Cutting Bag Making Machine

Feature:

1) This machine is suitable for sealing and cutting HDPE, LDPE and PP plastic film, it is one of the best

equipment for producing plastic film vest bag and flat bag.

2) This machine equipped with accurate photocell eye tracking ,can automatic control feeding, automatic

constant temperature control device, electric static removing.

3)The bag-making length is controlled by button,easy operation, stable performance and firm bottom sealing.

4this machine is the most economical and suitable sealing and cutting bag machine, making large,middle,

small size bag with good speed.

Main Technical Specification:

Model	YYXJ-600	YYXJ-800	YYXJ-1000
Max. Bag width	500mm/250mm×4	700mm/350mm×4	900mm/450mm×4
Max. Bag length	200-800mm	200-800mm	200-800mm
Bag making speed	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Work line	4lines	4lines	4lines
Error in Length	±1mm	±1mm	±1mm
Bag making Speed	30-100pcs/min ×4	30-100pcs/min ×4	30-100pcs/min ×4
Main Motor power	1.1kw	1.5kw	1.8kw
Heating Power	1.5kw	2kw	2.2kw
Total Power	3.5kw	5kw	6kw
Machine weight	800kg	1000kg	1200kg
Overall Dimensions	3.2×1.2×2m	3.2×1.5×2m	3.2×1.8×2m
