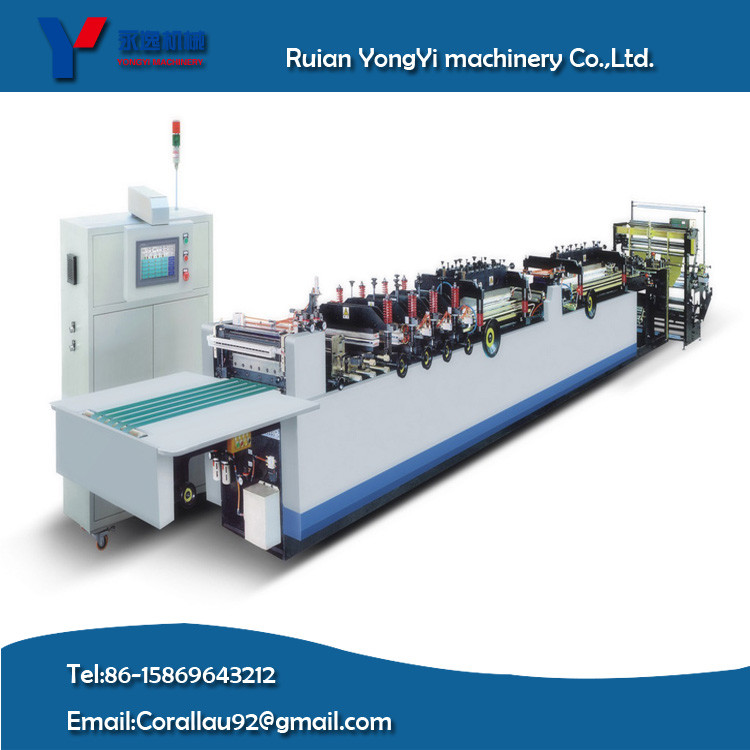

Middle Sealing Bottom Sealing Bag Making Machine

Middle Sealing Bottom Sealing Bag Making Machine

Middle Sealing Bottom Sealing Bag Making Machine

Product Details:

Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: YY-ZFD

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 15000USD
Packaging Details: Use in stretch film package, or wooden pack
Delivery Time: within 25days delivery
Payment Terms: TT
Supply Ability: 25sets/month
Contact Now
Detailed Product Description
Machine Type: Sealing Machine Bag Type: Fruit Bag
Computerized: Yes Material: Paper、plastic

this machine is suitable for laminated film,make the ice cream bag,other fruit package bag automatically. first middle sealing,then bottom sealing,then cut to each bag. make the bags successive, one-step forming.
save electricity power,reduce worker quantity,high speed.easy to operate.

main characteristic:
1, use micro-computer control
2,use inverter adjust speed
3,double step motor control the setting length
4,intelligent temperature control
5,photocell track and set the position
6,feeding material system have compensate structure
7,middle sealing use flat press structure,let the middle sealing more fasten
8,two pcs bottom sealing, sealing more fasten
9,machine with gusset structure

can make the belowing bags:
Type ZFD400
Scope of bag making width 30-400mm
Bag making speed 160pcs /min
Total power 4.2kw
Power source Singal phase 220v/ 3 phase 380v
Weight of machine 1350kg
Overall dimensions(L× W× H) 5880mm× 1280mm× 1200mm
