Name: Computer Controlled Bottom-Sealing Bag Making Machine
Brand: RUIAN YONGYI MACHINERY CO.,LTD
SKU: YY-DFJ
Price: 5500 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Machine Type: Sealing Machine

Bag Type: Fruit Bag

Material: Paper、plastic

Basic Infomation

Place of Origin: ZHEJIANG,CHIAN

Brand Name: YONGYI

Certification: CE

Model Number: YY-DFJ

Payment & Shipping Terms

Packaging Details: Use in stretch film package

Delivery Time: within 15days delivery

Payment Terms: TT

Supply Ability: 25sets/month

Gallery

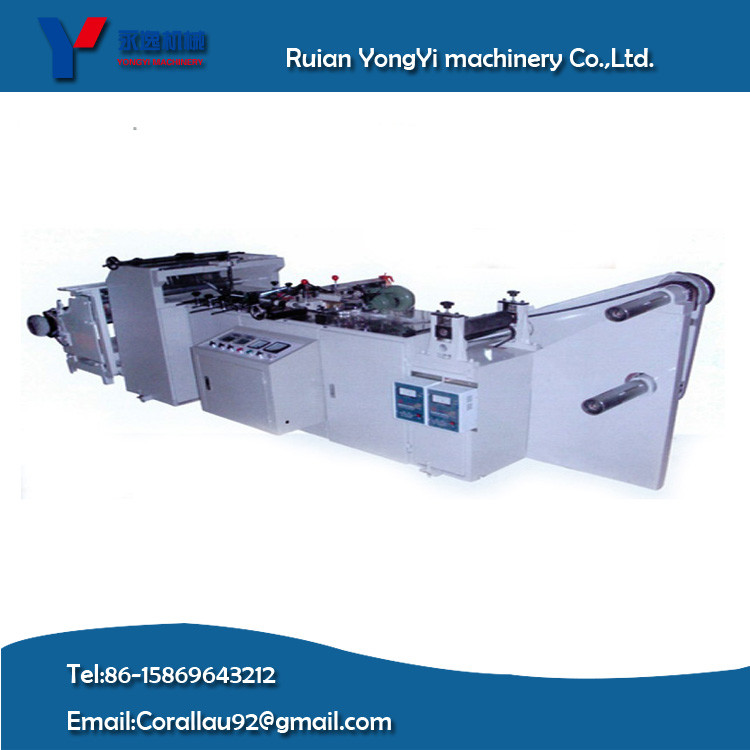

Computer Controlled Bottom-Sealing Bag Making Machine

Product Description

DFJ-350/ 500 Computer-controlled Multifunctional
Bottom-sealing Machine
1. USE:
This machine is suitable for bottom / Side sealing and cutting in producing all kinds of film composite bags. And it is an ideal facility for producing packing bags of mailbag, biscuits, dried fruits, teas, washing powder, as well as PE film bags etc.
FEATURE:
1, Whole machine computer control, feeding with stepper motor
2, Freely set length, step length photoelectric tracking, auto counting and alarming
Freequency conversing timing, auto temperature control and auto high-position halt

Main Technical Variables:

Model	DFJ-350	DFJ-500
Bag making speed	40-200pcs/min	40-170pcs/min
Bag making width	20-320mm	30-480mm
Bag making length	30-999mm	30-999mm
Location precision	±0.5mm	±0.5mm
Voltage(Three-phase four-wire)	380/220V	380/220V
Power	4.2kw	6kw
Overall size(L×W×H)	3000×1000×1200mm	3000×1200×1200mm
