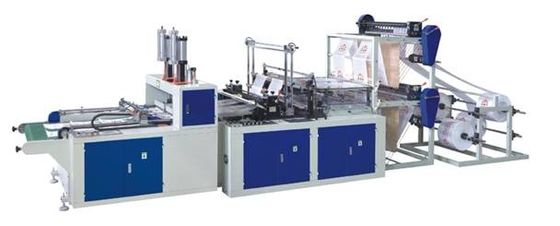

HQ Series Full Automatic Double Lines Heat Cutting Shopping Bag Making Machine

Product Details:

Place of Origin:	Shopping Bag Making Machine made in China
Brand Name:	YONGYI's Shopping Bag Making Machine
Certification:	CE of Shopping Bag Making Machine
Model Number:	HQ-350×2 Shopping Bag Making Machine

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	12000USD
Packaging Details:	Use in stretch film package, or wooden rack
Delivery Time:	within 25days delivery
Payment Terms:	TT
Supply Ability:	25sets/month

Contact Now

Detailed Product Description

Machine Type:	Cutting Machine	Bag Type:	Shopping Bag
Material:	Plastic	Computerized:	Yes

1.Feature:

1.1 This machine is applied to manufacture and printing the uncolored vest bags made of HDPE, LDPE roll film.

1.2 It adopts computer control, stepper motor fixed length, photo-electric tracking, static elimination, host frequency control, automatic counting, automatic discharge, high parking.

1.3 LCD screen shows real time, from feed- back cover-cut-blurted-conveying automatic running.

1.3 It is of high degree of automation and good economic result., can both suitable for color bag, blank shopping bag making.

1.4 adopt automatic punching function, increase vest bag making speed and save labor.

2. Main Technical Specification

Model	HQ-350×2	HQ-450×2
Max. Bag width	300mm×2	400mm×2
Max. Bag length	650mm	650mm
Bag thickness	0.015-0.035mm	0.015-0.035mm
Bag make speed	140-200pcs/min×2	140-200pcs/min×2
Air supply	5kg/cm2	5kg/cm2
Total power	7kw	9kw
Weight	1400kg	1600kg
Dimension	6000×1400×1600mm	6000×1400×1600mm
