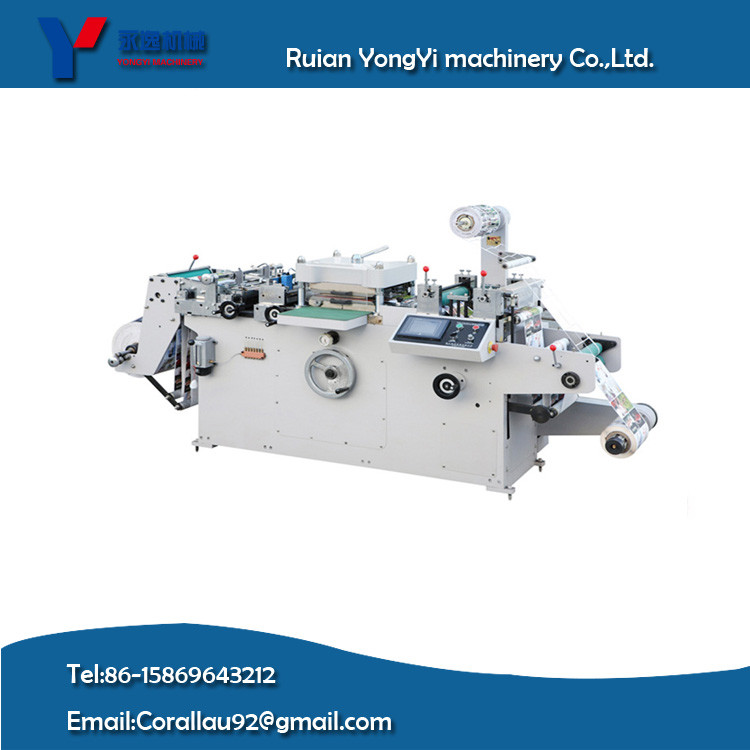

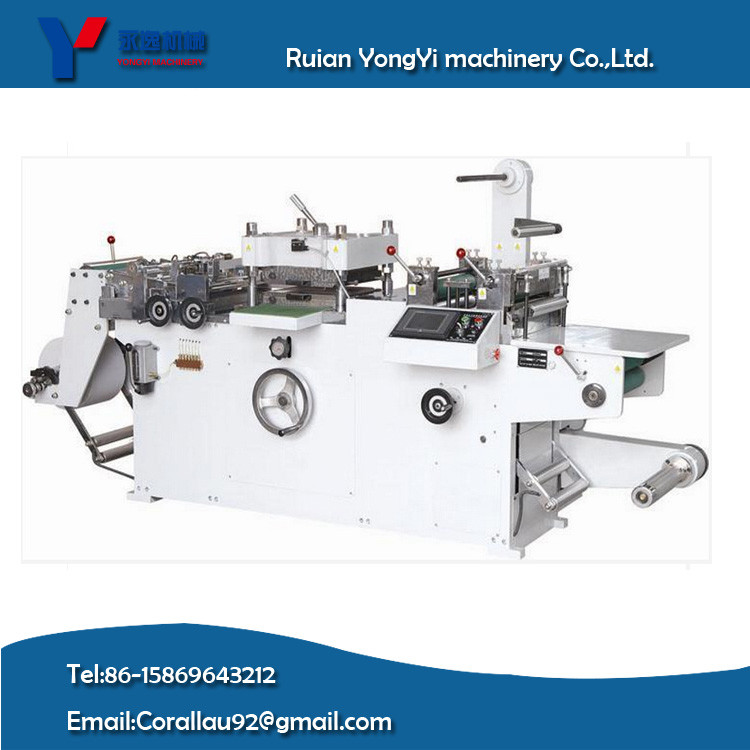

Auto Die Cutting Machine for Self Adhesive Label

Auto Die Cutting Machine for Self Adhesive Label

    • Auto Die Cutting Machine for Self Adhesive Label
    • Auto Die Cutting Machine for Self Adhesive Label
  • Auto Die Cutting Machine for Self Adhesive Label

    Product Details:

    Place of Origin: ZHEJIANG,CHIAN
    Brand Name: YONGYI
    Certification: CE
    Model Number: MQ-320/420

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: 12000USD
    Packaging Details: Use in stretch film package, or wooden pack
    Delivery Time: within 3 Days delivery
    Payment Terms: TT
    Supply Ability: 25sets/month
    Contact Now
    Detailed Product Description
    Rated Power: 2.2kw No-Load Rotational Speed: 10-150times/min
    Saw Blade Diameter: 320 Max. Cutting Depth: 0-450gsm
    Application: Automtic Dimensions: 2.8×1.3×1.4m
    Weight: 2000kg Type: Label Die Cutting Machine
    HS Code: 8441100000

    Product Description

    Die cutting machine, die cutter machine, die cutter.

    Label die cutting machine, die cutter, punching machine

    Die cutting machine

    Die cutter

    Die cutting machine

    Flat die cutting machine

    Die mould machine

    Hot stamping

    This machine is applicable to die cut through platenwith high precision, while the computer controls the slices and conveyor. The sides of trademarks and longitudinal route are tracked through three photoelectric eyes to position, while the die cutting, discarded delivery or auto trademark labeling can be finished in the processing of one web. The machine is applicable to die cut paper self adhesive trademark, Dacron film trademark and laser anti-false trademark. It is an ideal complete set of soft printing machine, continuous thread printing machine, relief printing machine and die compress machine for anti-false trademarks.

    Main technical parameters:
    Type:                                                                                       YYMQ-320   YYMQ-420
    Die Cutting Speed:                                                   30-145times/min 30-145times/min
    Max Feedging Diameter:                                                       450mm 450mm
    Max Web Width:               320mm 420mm
    Max Die Cutting width:     300mm 400mm
    Max Die Cutting Length:     300mm 300mm
    Positioning Precision:                     0.15mm 0.15mm
    Main Motor Power:                                                                       1.1kw   1.2kw
    Total Power:                                                                             2.5kw   3.5kw
    Power Supply Voltage:                                                 220v & plusmn; 10% 380v & plusmn; 10%
    Weight:                                                                         (about)1500kg (about)1800kg
    Overall Dimension:                                         2600x950x1400mm   2600x1050x1400m
