RUIAN YONGYI MACHINERY CO.,LTD
RUIAN YONGYI MACHINERY CO.,LTD
 |
| Place of Origin: | ZHEJIANG,CHIAN |
| Brand Name: | YONGYI |
| Certification: | CE |
| Model Number: | YY-320 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 1000-120000USD |
| Packaging Details: | Use in stretch film package, or wooden pack |
| Delivery Time: | within 25days delivery |
| Payment Terms: | TT |
| Supply Ability: | 10sets/month |
| Rated Power: | 8kw | No-Load Rotational Speed: | 110m/min |
|---|---|---|---|
| Application: | Automtic | Dimensions: | 3400mm*1200mm*1500mm |
| Weight: | 2500KG |
1. Characteristics:

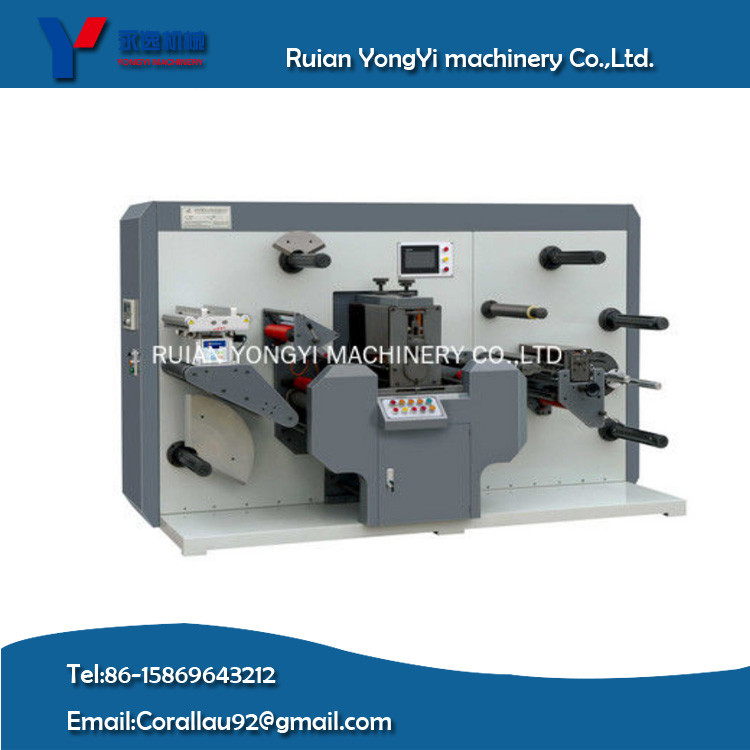

320-type intermittent. Full rotary die-cutting machine is a trade mark independently developed set of optical, mechanical, electrical in one of the new die-cutting, slitting equipment. Complete aircraft control system and servo system uses well-known German manufacturers of new products, the machine consists of six parts: Unwinding, correction, laminating, precise registration die cutting, slitting, finished rewinding.
Cutting our patent system-type products, according to product need to use the full rotary die-cutting or intermittent cutting, selection cutting intermittently when winding and rewinding, the region's rising power correction system consistent (conventional batch to block edges ), die-cutting products in the transmission does not occur during the shift. Intermittently cutting the use of magnetic roller, free replacement, different product simply replace the flexible die cutting knife. High speed, high precision, simple operation, increased efficiency, reduced cost. Particularly suitable for large, medium and small-volume and high quality requirements of the label die-cutting. Large quantities only in the touch screen product, choose full rotation and put the corresponding full rotary die cutting roller can be achieved. Greatly improved the quality label die-cutting and productivity for enterprises to create greater profit margins, is ideal for printing manufacturers must die-cutting machine equipment.
2. Main technical parameter:
|
Max Speed |
300cyles/min(110m/min) |
|
Accuracy of Cutting |
±0.15mm |
|
Paper Width |
80mm---320mm |
|
Max Unwinding Dia. |
φ700mm(about 2000Meters) |
|
Max Rewinding Dia. |
φ700mm(about 2000Meters) |
|
Standard cylinder |
Single cylinder range:60~120Teeth |
|
MOTOR Power |
8 KW |
|
Overall Diameter(L×W×H) |
3400mm×1200mm×1500mm |
|
weight |
2400KG |
Ps:one free cylinder for one machine.gear:1/8”CP
3.Standard configuration:
A:Unwinding
B:Web guiding system(BST).
C:Single cylinder, Size range:Support 65~160Teeth magnetic cylinder.
D:Servo motors(Panasonic imported from Japan)
E:HMI interface
F:Conveyor&collection table
4. Delivery time: 60 days
5.Payment terms: T/T.30% deposit in advance, and 70% balance payment before shipment
Contact Person: Miss. Coral
Tel: 008615869643212
