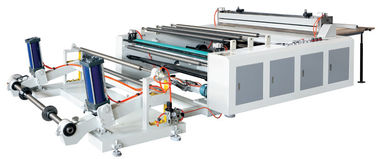

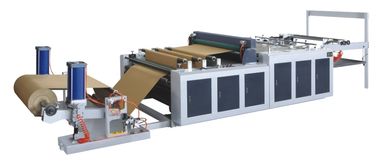

HQ-B Series Computer Middle Speed Auto Loading and Stack Paper Cross Cutting Machine
Usage:
This machine is specialist for horizontal and vertical cutting paper rolling materials to small sheet.
Performance and Characteristics
1)Adopts pneumatic automatic materials loading system with much easy operation and convenience.
2)Adopts down-up recurrent cutting with orderly finished products and without water caltrop;meantime,it can be used for horizontal cutting
and vertical cutting at one time
3)It adopts servo motor for controlling constant-length cutting.
4)It adopts PLC control, contact screen operation.
5It adopts pneumatic, displacement sensor for controlling transmission system, with photoelectric, gas together, it has the
function of easy operation, high precision, good stability, low noise.
6This machine has the function of the frequency converter timing device, automatic counting, stop working by alarm ,magnetic
powder tension control, can be vertically, adopt blower fan to get rid of waste.
7)It has the functions of high-precision of cutting, high speed,etc. pneumatic structure combined with computer control be adopted for transmission section ,
making it become much more steady operation.
8It has the function of automatic stacking which is in order . Photoelectric auto tracing subtense system.
Main Technical Specification
|
Model
|
HQ-1100B
|
HQ-1400B
|
|
Max. Unwind diameter
|
1400mm
|
1400mm
|
|
Paper thickness
|
40-500g
|
40-500g
|
|
Effective cut width
|
1100mm
|
1400mm
|
|
Cut length
|
20-1200mm
|
20-1200mm
|
|
Cut speed
|
10-150times/min
|
10-150times/min
|
|
Cutting precision
|
±0.2mm
|
±0.2mm
|
|
Power condition
|
380V, 50HZ or according to customer request
|
|
Total power
|
8.5kw
|
9.5kw
|
|
Weight
|
3500kg
|
4200kg
|
|
Dimension
|
4000×1900×1500mm
|
4200×2200×1500mm
|
|
Main function
|
1.1 roll material loading; 2.Round cutter for slitter;
3.EPC and photo-sensor.
|
