Name: HQ-A Series Computer control Normal Speed Film Roll Cross Cutting Machine
Brand: RUIAN YONGYI MACHINERY CO.,LTD
SKU: HQ-A Film Roll Cross Cutting Machine
Price: 6500 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Rated Power: 5kw

No-Load Rotational Speed: 60m/min

Saw Blade Diameter: 1000mm

Max. Cutting Depth: 0-450gsm

Application: Automtic

Dimensions: 3500×1500×1500mm

Weight: 1200kg

Type: Film Roll Cross Cutting Machine

Basic Infomation

Place of Origin: Film Roll Cross Cutting Machine made in China

Brand Name: YONGYI's Film Roll Cross Cutting Machine

Certification: CE of Parper Film Cross Cutting Machine

Model Number: HQ-A Film Roll Cross Cutting Machine

Payment & Shipping Terms

Packaging Details: Use in stretch film package, or wooden rack

Delivery Time: within 25days delivery

Payment Terms: TT

Supply Ability: 25sets/month

Gallery

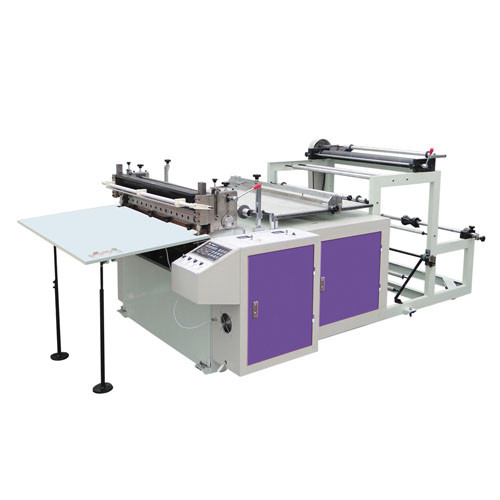

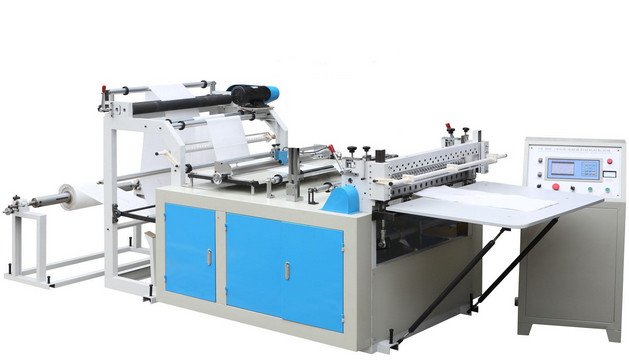

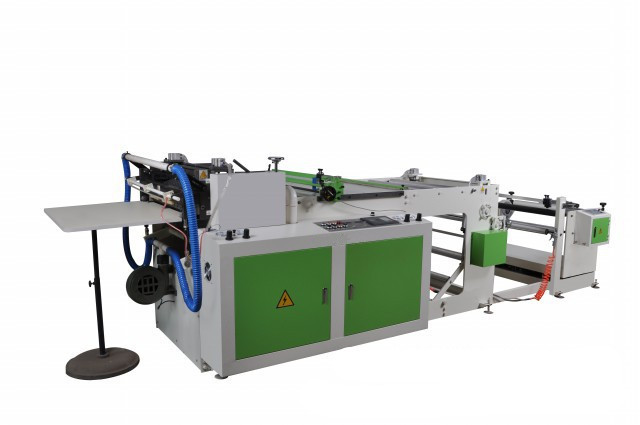

HQ-A Series Computer control Normal Speed Film Roll Cross Cutting Machine

Product Description

HQ-A Series Computer control Normal Speed Paper Roll Cross Cutting Machine

HQ-A Series Computer control Normal Speed Film Roll Cross Cutting Machine 0

1.Feature:

1)It is suitable for transversely cut the roll material like paper, film printed compound.

2)With computer control, DC speed adjustment, automatic length setting, automatic correction system,

automatic counting, signal alarm, photoelectrical trace and so on.

3)Magnetic powder clutch control the rewind tension, pneumatic automatic feeding.

4)The machine is compact construction, nice design and high robotization, is the good equipment for the

roll printed materials to cut.

2.Main specification:

Model	HQ—1000A	HQ—1200A	HQ-1500A
Machine width	1050mm	1150mm	1500mm
Max. diameter	￠600mm	￠600mm	￠600mm
Max. cutting width	950mm	1150mm	1450mm
Cutting length	50-1200mm	50-1200mm	50-1200mm
Thickness	Plastic: 0.1mm-0.5mm Paper: 75g-450g	Plastic: 0.1mm-0.5mm Paper: 75g-450g	Plastic: 0.1mm-0.5mm Paper: 75g-450g
Precision	±0.3mm	±0.3mm	±0.3mm
Cutting speed	10—120pcs/min	10—120pcs/min	10-120pcs/min
Power	5.5kw	7.5kw	9.5kw
Power supply	380v/50hz	380v/50hz	380v/50hz
Weight	1200kg	1500kg	1800kg
Dimension	3.5×1.3×1.5m	3.5×1.5×1.5m	3.5×1.7×1.5m

Contact Person :	Coral
Tel :	008615869643212
