| Place of Origin: | ZHEJIANG,CHIAN |
| Brand Name: | YONGYI |
| Certification: | CE |
| Model Number: | YY-320 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 1000-120000USD |
| Packaging Details: | Use in stretch film package, or wooden pack |
| Delivery Time: | within 25days delivery |
| Payment Terms: | TT |
| Supply Ability: | 10sets/month |
| Rated Power: | 7.5kw | No-Load Rotational Speed: | 110m/min |
|---|---|---|---|
| Saw Blade Diameter: | 320mmX450mm | Application: | Semi-automtic |
| Dimensions: | 2500*1600*1600 | Weight: | 1700kg |
| Type: | Adhesive Label Die Cutting Machine |
1. Characteristics:

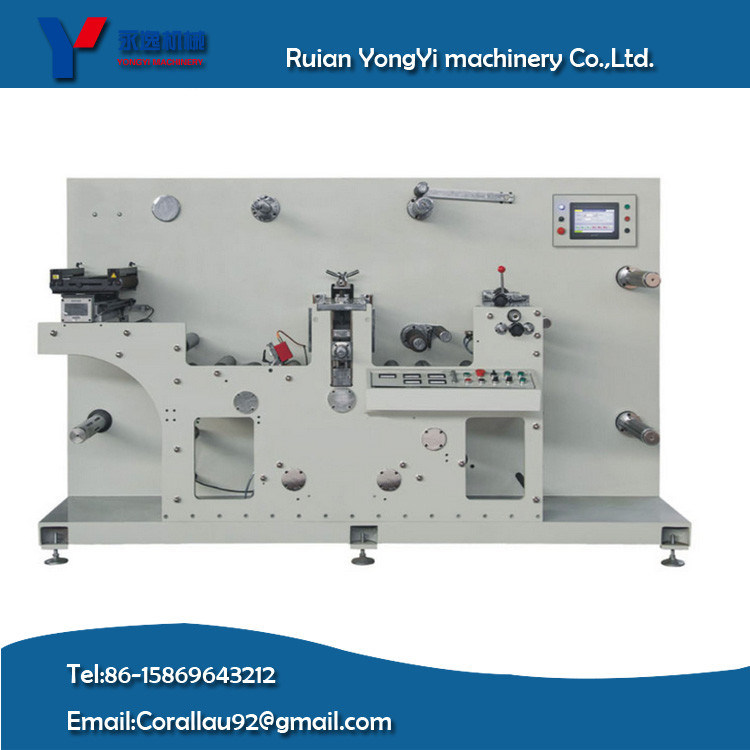

SRF-330 Semi-rotary Flexographic coating machine is the optimal solution designed for digital converting process,especially coating as pre press on digital printer and also finishing procedure,as full servo driven,the machine is able work in both full rotary or semi-rotary mode with register,spot varnishing or flood coating,optional IR dryer,UV curing system,corona,dust proof etc.
2. Main technical parameter:
|
Max Coating Speed |
300Cycles/Min |
|
Accuracy of Print |
±0.15mm |
|
Max Print Area |
320mmX450mm(W*L) |
|
Paper Width |
330mm |
|
Max Unwinding Dia. |
700mm |
|
Max Rewinding Dia. |
700mm |
|
Standard Print cylinder |
160Teeth 1/8”CP(Standard) |
|
UV Power |
7.5kW |
|
IR Power |
12KW |
|
MOTOR Power |
8KW |
|
Overall Diameter(L×W×H) |
2500*1600*1600 |
|
Weight |
1700KGS |
3.Standard configuration:
A:Unwinding
B:Web Guider
C:160teeth printing cylinder(solid,can’t changeable)
D:Servo motors(Panasonic imported from Japan)
E:HMI Touch screen operating system(Schneider+PLC)
F:Slitter
G:Rewinder&Waste matrix mandrels.
Ps:these offers are valid in 2 month.
4. Delivery time: 60 days
5.Payment terms: T/T.30% deposit in advance, and 70% balance payment before shipment
