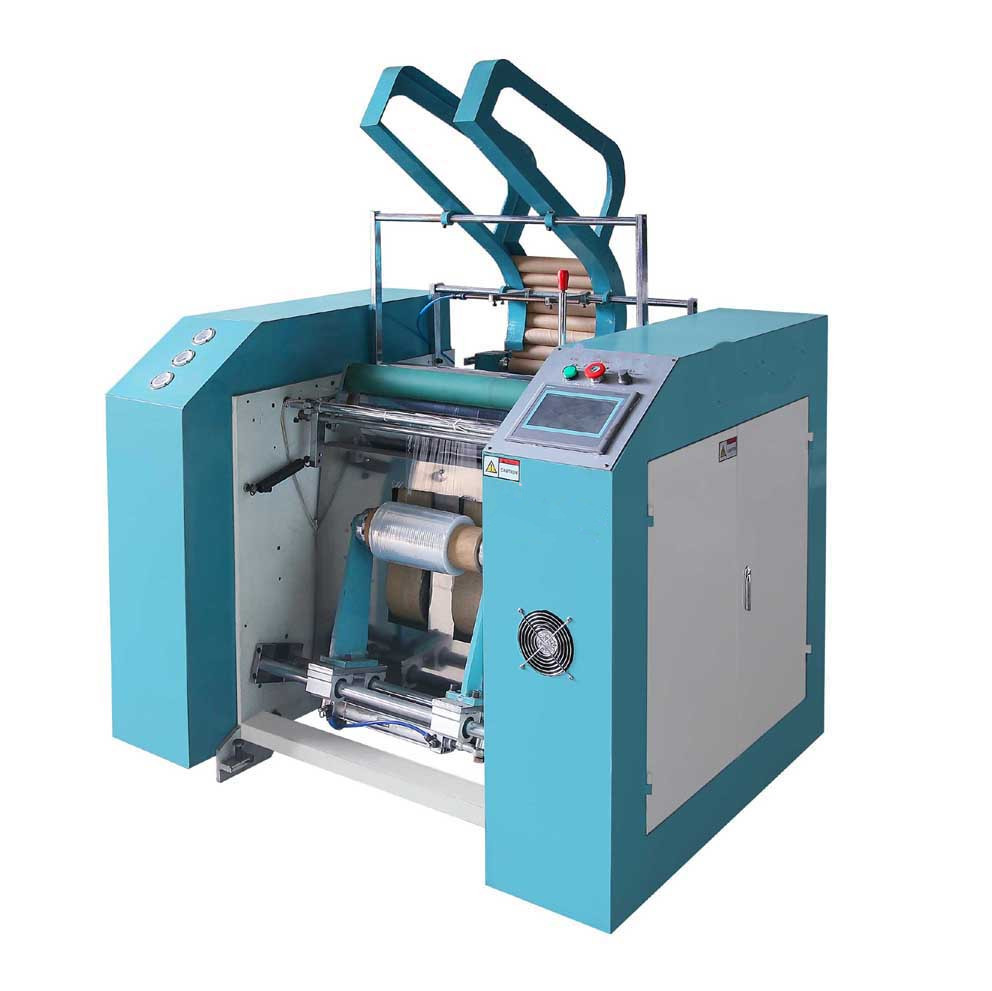

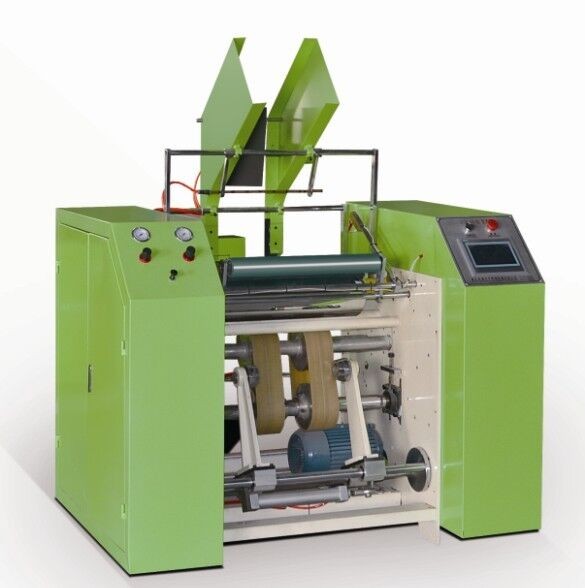

YYRW Series Full Automatic Stretch Film/Cling Film Rewinder Machine

YYRW Series Full Automatic Stretch Film/Cling Film Rewinder Machine

    • YYRW Series Full Automatic Stretch Film/Cling Film Rewinder Machine
    • YYRW Series Full Automatic Stretch Film/Cling Film Rewinder Machine
  • YYRW Series Full Automatic Stretch Film/Cling Film Rewinder Machine

    Product Details:

    Place of Origin: Stretch Film/Cling Film Rewinder Machine made in China
    Brand Name: YONGYI's Stretch Film/Cling Film Rewinder Machine
    Certification: CE of Stretch Film/Cling Film Rewinder Machine
    Model Number: YYRW-450 Stretch Film/Cling Film Rewinder Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: 9000USD
    Packaging Details: Use in stretch film package, or wooden rack
    Delivery Time: within 25days delivery
    Payment Terms: TT
    Supply Ability: 25sets/month
    Contact Now
    Detailed Product Description
    Width Of Finished Products: 450mm Main Motor: 0.55kw
    Linear Speed Of Machinery: 150-300m/min Roll Number: 6rolls/minute, 30m/roll
    Roll Changer: Automatic Change Diameter Of Parent Roll(max): φ400mm
    Core Specification Of Parent Roll: 3'', 2'', 1'' Total Power: 7kw

    YYRW Series Full Automatic Stretch Film/Cling Film Rewinder Machine



    1.Feature:

    1. It is the latest style of stretch film rewinder in China. It is full automatically rewinding and cutting.

    2. Adopt PLC touch screen. Guarantee the operation more correction and easy.

    3. The speed is controlled system is: step motor + Inverter.

    4. The main function is slit the jumbo rolls film into small rolls, and according to the rewinder can correct

    the error layers of the production.

    5. It is suitable for stretch film, cling film, fresh keeping film, and aluminum foil film, etc.

    6. The production main used for packing, supermarket, hotel, restaurant, raw food, meat and sea food, etc.

    7. Suitable for PE, PP,PVC film rewinder, with automatic change roll function.

    2. Main Technical Parameter

    Type

    YYRW-450

    Width of finished products

    450mm

    Main motor

    3kw

    Drive motor

    0.55kw

    Linear speed of machinery

    150-300m/min

    Roll number

    6rolls/minute, 30m/roll

    Roll changer

    Automatic change

    Diameter of parent roll(max)

    φ400mm

    Width of parent roll(max)

    450mm

    Core specification of parent roll

    3'', 2'', 1''

    Width of sub-roll

    100-450mm

    Diameter of sub-roll(max)mm

    φ300mm

    Core specification of sub-roll

    according to customer request

    Overall dimensions (L×W×H)

    1.7×1.9×1.9m

    Total power

    7kw

    Weight

    0.7T
