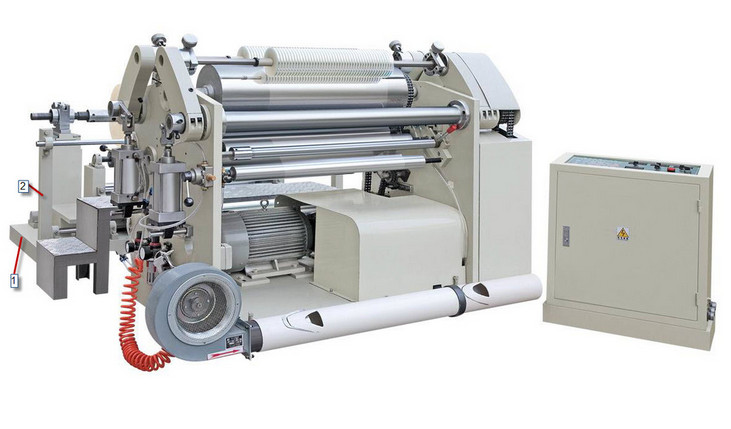

BFQ Series Computer Surface Reeling Slitting and Rewinder Machine

BFQ Series Computer Surface Reeling Slitting and Rewinder Machine

BFQ Series Computer Surface Reeling Slitting and Rewinder Machine

Product Details:

Place of Origin: made in China
Brand Name: YONGYI
Certification: CE
Model Number: BFQ-1100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 12000USD
Packaging Details: Use in stretch film package, or wooden rack
Delivery Time: within 25days delivery
Payment Terms: TT
Supply Ability: 25sets/month
Contact Now
Detailed Product Description
Max. Width Of Unwind Material: 1100mm Min. Width Of Product: 6mm
Machine Speed: 180m/min Unwind Diameter: 1000mm

BFQ Series Computer Surface Reeling Slitting and Rewinder Machine

1. Application
 The machine is applicable for slitting of BOPP, PET, PE, PP, PVC, aluminum foil, paper and isolating

material.

2.Feature
1) This machine adopts center-winding and surface-contacting and winding.

2) It is equipped with photoelectric automatic deviation-rectifying device, invariable tension magnetic powder arrester and clutch.

3)It is equipped with automatic meter-calculating measures and automatic stopping device.

4)Frequency variable and speed adjustable for mainframe.

5)Retractable roll-axis use of inflatable.

3.Main Technical Specification

Model

BFQ-1100

BFQ-1300

Max. Width of unwind material

1100mm

1300mm

Min. Width of product

5mm

5mm

Machine speed

180m/min

180m/min

Slitting speed

160m/min

160m/min

Unwind diameter

800mm

800mm

Rewind diameter

2×450mm

2×450mm

Rewind powder clutch

50N.M

50N.M

Main motor

3.5kw

4.5kw

Waste edge motor

0.55kw

0.55kw

Total power

4.5kw

5.5kw

Weight

2200kg

2500kg

Overall size

2×1.6×1.6m

2×1.8×1.8m
