WFQ-CSeries Computer Control High Speed Paper roll Slitting Machine(3 motor vector control

WFQ-CSeries Computer Control High Speed Paper roll Slitting Machine(3 motor vector control

WFQ-CSeries Computer Control High Speed Paper roll Slitting Machine(3 motor vector control

Product Details:

Place of Origin: High Speed Paper roll Slitting Machine made in China
Brand Name: YONGYI's High Speed Paper roll Slitting Machine
Certification: CE of High Speed paper roll Slitting Machine
Model Number: WFQ-1100C High Speed paper roll Slitting Machine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 50000USD
Packaging Details: Use in stretch film package, or wooden rack
Delivery Time: within 25days delivery
Payment Terms: TT
Supply Ability: 25sets/month
Contact Now
Detailed Product Description

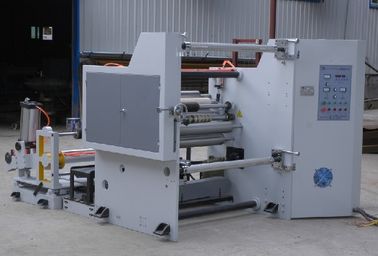

WFQ-C Series Computer Control High Speed Paper roll Slitting Machine(3 motor vector control)






Feature:

1.This machine is used for slitting and rewinding various large rolling material such as paper(120g-300g),kraft paper, coated paper, aluminum foil, PVC, plastic material, etc.

2.tis machine adopt PLC touch screen control, it has the function of auto metering, automatic alarm, etc.

adopt A and B pneumatic shaft structure for rewinding, easy for loading and unloading.

3.Equipped with automatic waste film blowing device.

4.automatic material loading by pneumatic,  matched with inflatable shat or pneumatic non shaft device.

Main technical specification:

Model

WFQ-1100C

WFQ-1300C

WFQ-1600C

Max. Unwind width

1100mm

1300mm

1600mm

Max. Unwind dia.

φ1400mm

φ1400mm

φ1400mm

Min. Rewind width

50mm

50mm

50mm

Max. Rewind dia.

φ1300mm

φ1300mm

φ1300mm

Slitting speed

10-250m/min

10-250m/min

10-250m/min

Total power

45kw

48kw

56kw

Power supply

380V/50hz

380V/50hz

380V/50hz

Machine weight

3500kg

3800kg

4500kg

Dimension

3x2x2.2m

3x2.4x2.2m

3x2.7x2.2m
