Name: Full Servo Motors 350 450 Narrow Web 8 Colors UV LABEL Horizontal Flexographic Flexo Printer Press Printing Machine
Brand: RUIAN YONGYI MACHINERY CO.,LTD
SKU: YYRY-350-8
Price: 86000 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Automatic Grade: Automatic

Type: Buy Flexographic Printers Flexo Printing Machine Flexo Printing Machine Price Mini Flexo Printing Machine Small Flexo Printing Machine Uv Flexo Printing Machine Flexo Printing Machine Roll To Roll 8 Color Flexo Printing Machine Flexo Label Printing Machine

Usage: Paper Printer,Label Printer,Bill Printer

Weight: 1.3T

Dimensions(l*w*h): 8600*2500*1800mm

Warranty: 1 Year

Unwinding Diameter: 800 Mm

Print Speed: 180m/min

Printing Length Range: 203.2-630mm

Substrate Type: Paper, Film, Foil, Label Stock, Corrugated Cardboard

Copy Paper: 15-350g/m2

Speed: 150m/m

Use: Printing

After Warranty Service: No Service

Print Width: 350

Print Color: 1. 2. 4 . 6 .8

Basic Infomation

Place of Origin: Zhejiang

Brand Name: YONGYI

Certification: CE

Model Number: YYRY-350-8

Payment & Shipping Terms

Packaging Details: Export wooden pallet packaging

Delivery Time: 40 DAYS

Payment Terms: T/T,

Supply Ability: 25 SETS 40DAYS

Gallery

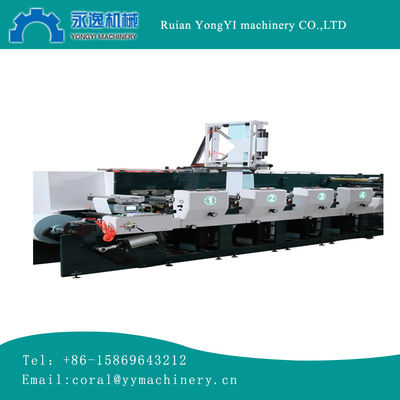

Full Servo Motors 350 450 Narrow Web 8 Colors UV LABEL Horizontal Flexographic Flexo Printer Press Printing Machine

Product Description

Full Servo Motors 350 450 Narrow Web 8 Colors UV LABEL Horizontal Flexographic Flexo Printer Press Printing Machine

Characteristic

1,The unit printing machine is our newest machine which aimed to produce high quality label,it is suitable for printing with film material, Aluminium material ,all paper material . 2,This machine with compact size and short web path keeps wastage of material 3,The Printing roller adopts sleeve system without gear which is light , easy , convenient and fast to exchange , this design largely improves the printing quality and reduces the maintenance 4,The anvil roller equips with water chiller ,it’s good for film material as well The full machine adopt all servo motor , each printing unit has double servo motors ,one is for sleeve cylinder, the other is for the impression roller which is also as a cooler roller .

Model	YY-RY-350	YY-RY-420
Max. rewinding diameter	600mm	600mm
Max. winding diameter	600mm	600mm
Max printing width	350mm	420mm
Wall thickness of machine	30mm	30mm
Printing material width	20g-300g paper,PET 12~60 μm,OPP 18~60μm	20g-300g paper,PET 12~60 μm,OPP 18~60μm
Tension control accuracy	+/-1Kg	+/-1Kg
Tension control range	5-50g	5-50g
Gear size	1/8''CP,Tooth pitch 3. 175mm	1/8''CP,Tooth pitch 3. 175mm
Print plate thickness	1.7mm/1.14mm	1.7mm/1.14mm
Overprint accuracy	±0.1mm	±0.1mm
Printing servo motor power	1.8kw	1.8kw
Die cutting servo motor power	1.8kw	2.9kw
Winding motor power	3KW	3KW
Speed	0-180m/min	0-180m/min
Total power	60kw	80kw
Voltage	380V 3PH 50Hz	380V 3PH 50Hz
Air pressure	100PSI (0.6Mpa)	100PSI (0.6Mpa)

Main components

1. Servo drivers 2. Servo motors 3. Simpo reducer 4. MCGS Touch screen 5.LED UV or ARC UV 6.Corona treater

7.Dust remove

8.Datelogic color sensor

9.Airtac cylinder 10.Auto web guiding

11.Merobel tension sensor 12.Sleeve plate roller
13.Ceramic anilox

Cold Stamping Device

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.

Printing System

--Super Flexo Printing unit --Printing cylinder is controlled by independent driven motor --Printing cylinder with sleeve style ,is light and easy to exchange --Printing plate :plates mounted on the sleeve --The impression roller is also the waster chiller roller as 195mm for the diameter,and driven by independent servo motor directly and it can print the plastic film well --Automatic cooling circulatory system : The material can be cooled at the same time when we are making the printing that have more efficiency even run with shrink material --Pre-registration is controlled by servo motor ,and the motor will calculate automatically when you input the printing length in the main touch screen , the printing sleeve will go to the corresponding position base on the zero point on the sleeve --Fine registration should be adjusted on the touch screen When you do the correct color register, then open the register sensor to read the printing mark and the machine can do automatic tracking registration always. --Operation panel on each unit for fine adjustment with self-locking function --Fine pressure adjustment for the bearer --The pressure among the anilox roller ,printing plate and material will be fine adjusted by bearer , it can be operated easily by small HMI --Second Pass by registration sensor -- Easy take off anilox roller --Easy take off ink tray ,auto Up/Down --Every printing unit has its own HMI and Main HMI for whole machine

Rotary die cutting

-- 1 set of die cutting station -- total 3 rollers die cutting system,can finish the job with front or back side of the web by changing the anvil roller and magnetic roller --A crane assembled near the die cutting station to load and unload the magnetic cylinder

Machine in factory

Full Servo Motors 350 450 Narrow Web 8 Colors UV LABEL Horizontal Flexographic Flexo Printer Press Printing Machine 10
