Features Gallery Product Description Request A Quote

Features

Specifications

Type: Buy Flexographie Uv Printing Machine Flexographic Printer Machine Printing Flexo Machine Labels Printing Machine Flexo Label Printer Flexo Printing Machine Printing Flexo Machine

Automatic Grade: Automatic

Usage: Label Printing

Weight: 1.3T

Dimensions(l*w*h): 8600*2500*1800mm

Max Paper Width: 330mm

Suitable Material: Paper,Flim

Print Speed: 180m/min

Standard: CE ISO

Maximum Width: 350mm

Raw Material: Pe Paper Aluminum Foil

Gross Power: 55KW

Plate Type: Flexo Plate

Printing Color: 8 Colors

Basic Infomation

Place of Origin: Zhejiang

Brand Name: YONGYI

Certification: CE

Model Number: YYRY-350-8

Payment & Shipping Terms

Packaging Details: Export wooden pallet packaging

Delivery Time: 40 DAYS

Payment Terms: T/T,

Supply Ability: 25 SETS 40DAYS

Gallery

8 Color Flexo Printing Machine Multi Color Printing for Labels Stickers and Packaging

Product Description

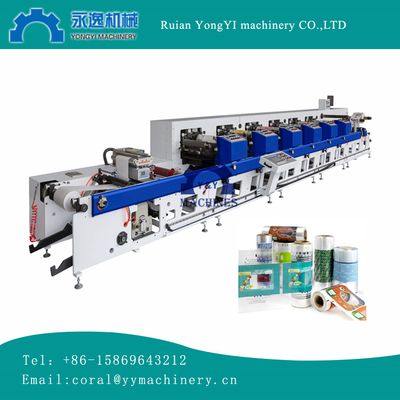

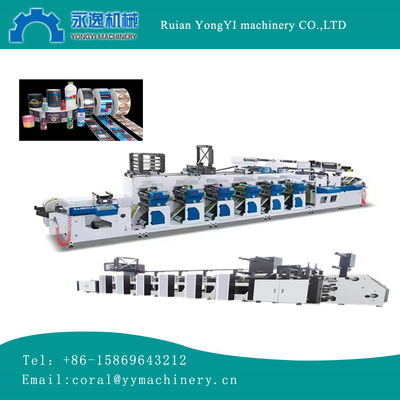

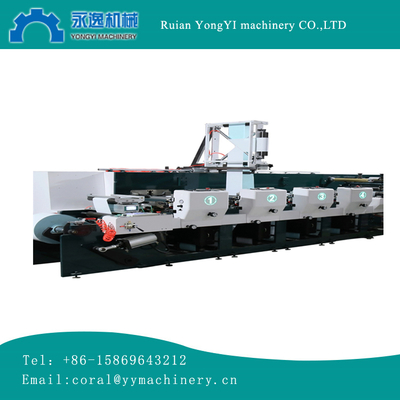

8 Colors Flexo Printing Machine Multi Color Printing for Labels Stickers and Packaging

Name: 8 Color Flexo Printing Machine Multi Color Printing for Labels Stickers and Packaging
Brand: RUIAN YONGYI MACHINERY CO.,LTD
SKU: YYRY-350-8
Price: 76000 USD
Availability: InStock

Each printing unit of this petal type flexo printing machine is independent and arranged horizontally in a straight line. High printing accuracy, good accessibility, flexible operation, and short preparation time before printing, all these characteristics make our petal type flexo printing machine a higher performance- price ratio than other domestic petal type machine factories in China.

Main Feature:

1.From the discharge to the receipt of the short distance.
2.The ceramic stick is equipped with a scraper,which is printed and moist,and had a clear color.
3.Repeatedly printing the circumference of 190.5-635mm, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.

4.The use of gear color to solve the 360 degree coloring device gap, assembly, wear, etc, affecting the color accuracy and printing instability.

5.From left to right: coil feeding, printing, automatic infrared drying winding a coherent completion.
6.Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed caries according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.
7.Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8.Printing materials: paper 20-250gsm self adhesive soft coil and other materials.

Model	ZB-RY-350	ZB-RY-420
Max. rewinding diameter	600mm	600mm
Max. winding diameter	600mm	600mm
Max printing width	350mm	420mm
Wall thickness of machine	30mm	30mm
Printing material width	20g-300g paper,PET 12~60 μm,OPP 18~60μm	20g-300g paper,PET 12~60 μm,OPP 18~60μm
Tension control accuracy	+/-1Kg	+/-1Kg
Tension control range	5-50g	5-50g
Gear size	1/8''CP,Tooth pitch 3. 175mm	1/8''CP,Tooth pitch 3. 175mm
Print plate thickness	1.7mm/1.14mm	1.7mm/1.14mm
Overprint accuracy	±0.1mm	±0.1mm
Printing servo motor power	1.8kw	1.8kw
Die cutting servo motor power	1.8kw	2.9kw
Winding motor power	3KW	3KW
Speed	0-150m/min	0-150m/min
Total power	60kw	80kw
Voltage	380V 3PH 50Hz	380V 3PH 50Hz
Air pressure	100PSI (0.6Mpa)	100PSI (0.6Mpa)
