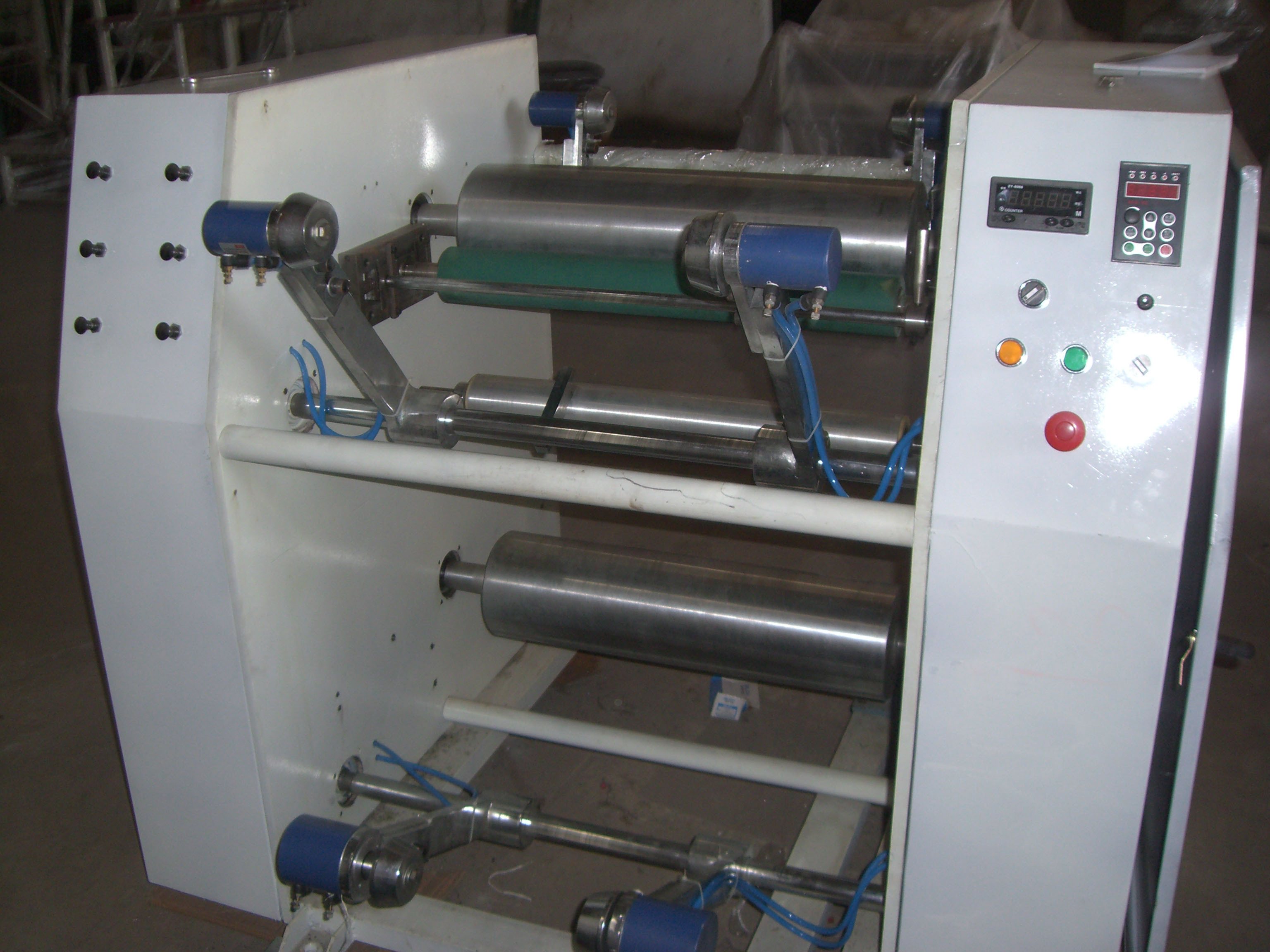

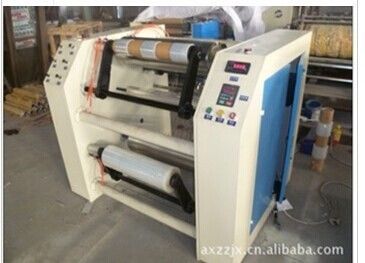

YYRW Series Semi-automatic Stretch Film Rewinder Machine
Feature:
1. It is a kind of multi-functional machine integrated with slitting and rewinding.
2. It mainly slits large-sized or big roller stretch film into small ones, which avoids the split-level film and improves the technical index of product, such as level and appearance quality etc.
Main technical specification
Model |
YYRW-500A |
YYRW-600A |
Width of Finished Product |
500mm |
600mm |
Power of Motor |
1.5kw |
2.2kw |
Design Line Speed |
400m/min |
400m/min |
Roll Laying Mode |
By hand |
By hand |
Max. Diameter of Parent Roll |
400mm |
400mm |
Max. Width of Parent Roll |
500mm |
600mm |
Core Specification of Parent Roll |
3” |
3’’ |
Max. Width of Sub-roll |
500mm |
600mm |
Max. Diameter of Sub-roll |
200mm |
200mm |
Core Specification of Sub-roll |
3” 2” 1” |
3” 2” 1” |
Dimension |
1.5×1.3×1.5m |
1.5×1.4×1.5m |
Weight |
600kg |
800kg |
