Place of Origin:Slitting Rewinder Machine made in China
Brand Name:YONGYI's Slitting Rewinder Machine
Certification:CE of Slitting Rewinder Machine
Model Number:WFQ-1300B
Payment & Shipping Terms
Packaging Details:Use in stretch film package, or wooden rack
Delivery Time:within 25days delivery
Payment Terms:TT
Supply Ability:25sets/month
Gallery

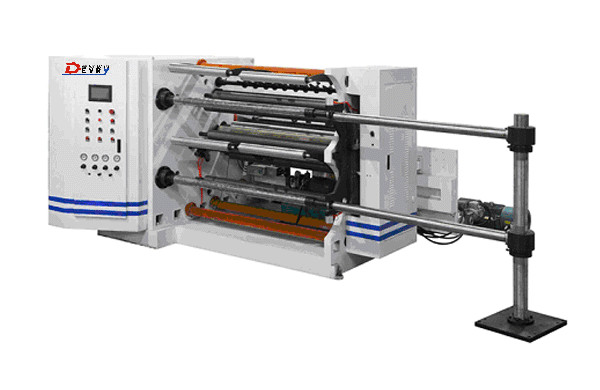

WFQ-B Series Computer Control High Speed Slitting Rewinder Machine
Product Description
1. Application 1.This machine is suitable for separating and cutting such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. And can cut edge, separate and cut material according to different requirements during production. 2.Feature 1) This machine electrical part is controlled by PLC, according to slitting requirement, entering the parameter by touch screen, LCD screen show the working data, the controlling system is good in starting buffer,stopping tightly,length meter and so on, easily operation. 2) Full automatic tension control system in winding, keep the tension same all the time, or according to requirement to apply taper control. 3) The EPC applies made in Japan to trace automatically, no matter the edge or line, can keep the material always in right position. 4) The winding and rewind unit apply non-roller pneumatic loading or optional: hydraulic lift. 5) Main traction and wind or rewind controlled by the 2pcs vector inverter. 6) Rewinding tension controlled by PLC to change the parameter or rewind diameter digital type taper controlled automatic. 7) Rewind roller can divide into slip tension air shaft and slip friction control automatic, suitable for different thickness materials to slit in one time. 3.Main Technical Specification
Model
WFQ-1300B
WFQ-1600B
Slitting width
20mm-1300mm
20-1600mm
Machine speed
300m/min
300m/min
Slitting speed
250m/min
250m/min
Max. Unwind diameter
¢1000mm
¢1000mm
Max. Rewind diameter
2×¢600mm
2×¢600mm
Unwind shaft
Air Shaft
Air Shaft
Rewind shaft
Differential Slip Shaft
Paper core dimension
¢3″
¢3″
Main control
PLC System + Man-Computer Interface
Tension control type
Taper Control Auto
Taper Control Auto
Driving type
Vector Frequency Change
Web guiding system
EPC(Edge Position Correction)
Slitting type
Straight blade: a. Fixed type; b.alterable type; Circular blade: a. Fixed type; b.alterable type.
