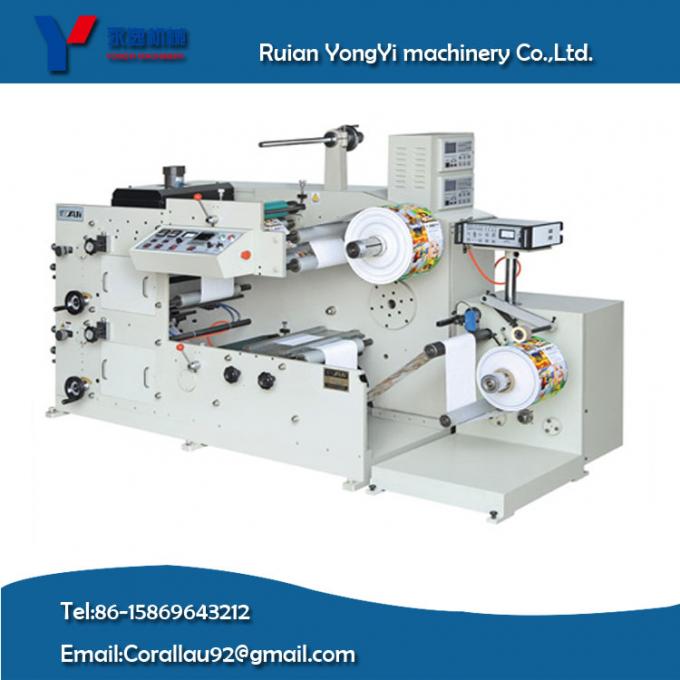

IR UV flexo sticker label printing machine ( With die cutting and slitting)

Product Details:
Place of Origin: ZHEJIANG,CHIAN
Brand Name: YONGYI
Certification: CE
Model Number: YYRY-320
Dimensions(L*W*H): 2000kg
Gross Power: 3000x1500x3000mm
Type: Flexographic Printer
Plate Type: Letterpress
Usage: Paper Printer
Color & Page: Multicolor
Automatic Grade: Automatic
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: 250000-500000USD
Packaging Details: Use in stretch film package, or wooden rack
Delivery Time: within 25days delivery
Payment Terms: TT
Supply Ability: 25sets/month
Description

Usage:
1.
It is used for printing various kinds of label with samll or middle or large order quanity printing service.
Also it is an ideal printing machine for the commercial bill,card paper,high grade adhesive tape trademark.

2.Performance and Features:
1. The main motor adopts inverters.
2. Unwinder and rewinder are controlled by magnetic powder brake and clutch(Japanese Mitsbish auto tension controller).
3. Unwinder system is controlled by auto-rectify sensor.
4. The machine adopts high quality ceramic anilox roller which is with long life and wear resisting and corrosion resistance.
5. The prining unit can register in 360 degrees.Each printing unit can independently gear and loosen,so other printing units can continue do printing.
6. The printing units are all equipped with a group of infrared dryers respectively .
7. Each IR dryer device of printing unit can interchange of UV dryer device.
8.The unwinder and rewinder all are with air shafts..
9. The inking roller can automatically fall off at stoppage and transfer at low speed in order to keep the ink from being dry and solid.
10. The roll feeding, printing, polising, auto infrared drying, lainating and rolling can be processed in one processing. It is characterized by wide application, non-population of printing ink and fast drying, quick printing. So it is an ideal printing machine for the commercial bill to print high-Gradded free adhesive trademark.



Specification:



Model No. RY-320 RY-450
Colors 4-6colors 4-6colors
Web maximum width 320mm 450mm
Max printing width  310mm 440mm
Printing length 175-320mm 175-320mm
Max printing speed 10-60m/ min 10-60m/ min
Unwinder diameter  600mm 600mm
Rewinder diameter

550mm

550mm

Machine weight 2000kg 2300kg
Machine dimension 3000x1500x3000mm 3000x1700x3000mm
