| Place of Origin: | paper rolls and plastic film rolls cross cutting machine made in China |
| Brand Name: | YONGYI's paper rolls and plastic film rolls cross cutting machine |
| Certification: | CE of paper rolls and plastic film rolls cross cutting machine |
| Model Number: | HQ-800 paper rolls and plastic film rolls cross cutting machine |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | 6500USD |
| Packaging Details: | Use in stretch film package, or wooden rack |
| Delivery Time: | within 25days delivery |
| Payment Terms: | TT |
| Supply Ability: | 25sets/month |
| Rated Power: | 5kw | No-Load Rotational Speed: | 60m/min |
|---|---|---|---|
| Saw Blade Diameter: | 1000mm | Max. Cutting Depth: | 0-450gsm |
| Application: | Automtic | Dimensions: | 3.5x1.5x1.5m |
| Weight: | 800kg | Type: | Paper Rolls And Plastic Film Rolls Cross Cutting Machine |
| Suitable Material: | Paper, Plastic Film | Warranty: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
HQ-800A Computer paper rolls and plastic film rolls cross cutting machine
1.Feature:
1)It is suitable for transversely cut the roll material like paper, film printed compound.
2)With computer control, DC speed adjustment, automatic length setting, automatic correction
system, automatic counting, signal alarm, photo electrical trace and so on.
3)Magnetic powder clutch control the rewind tension, pneumatic automatic feeding.
4)The machine is compact construction, nice design and high robotization, is the good equipment
for the roll printed materials to cut.
5) Heavy quality blade cutting, product neat, no edges.
2.Main specification:
|
Model |
HQ—800A |
HQ-1000A |
|
Machine width |
800mm |
1000mm |
|
Max. diameter |
600mm |
600mm |
|
Max. cutting width |
560mm |
960mm |
|
Cutting length |
50-1200mm |
50-1200mm |
|
Effective thickness |
Plastic: 0.1mm-0.5mm Paper: 75g-450g |
Plastic: 0.1mm-0.5mm Paper: 75g-450g |
|
Fixed length precision |
±0.3mm |
±0.3mm |
|
Cutting speed |
10—120pcs/min |
10-120pcs/min |
|
Power |
4.5kw |
5.5kw |
|
Suitable Power supply |
380v/50hz |
380v/50hz |
|
Weight |
700kg |
1200kg |
|
Machine dimension |
3500×1300×1500mm |
3500×1500×1500mm |

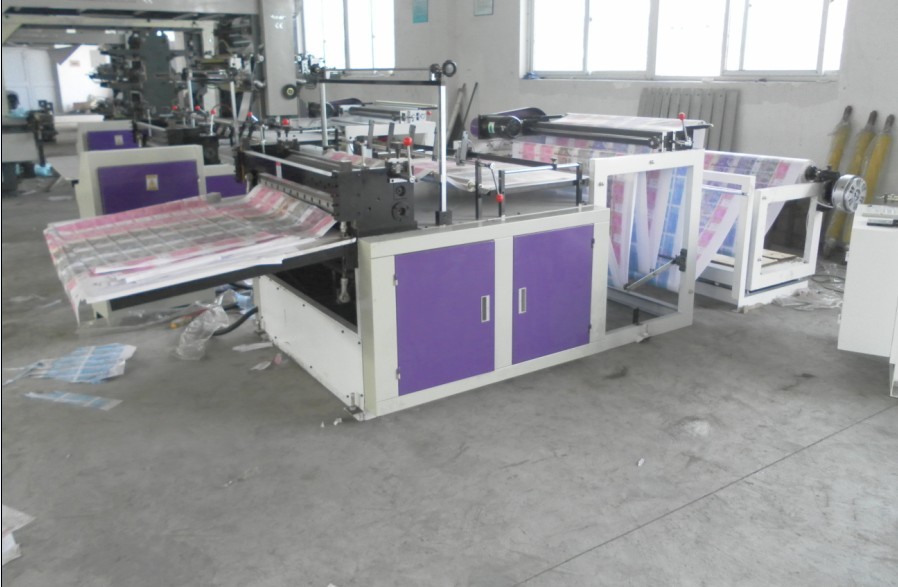

3.picture showroom:
